Grundfos Hydro HP

GRNDFS-HDR-HP
Requires Quote
  • States: NC, SC, VA
  • Summary: Grundfos Hydro HP is a high-pressure pump system designed with efficiency and easy maintenance in mind.
QTY
  • Details
  • Industries
  • Video
  • Steam Services Offered

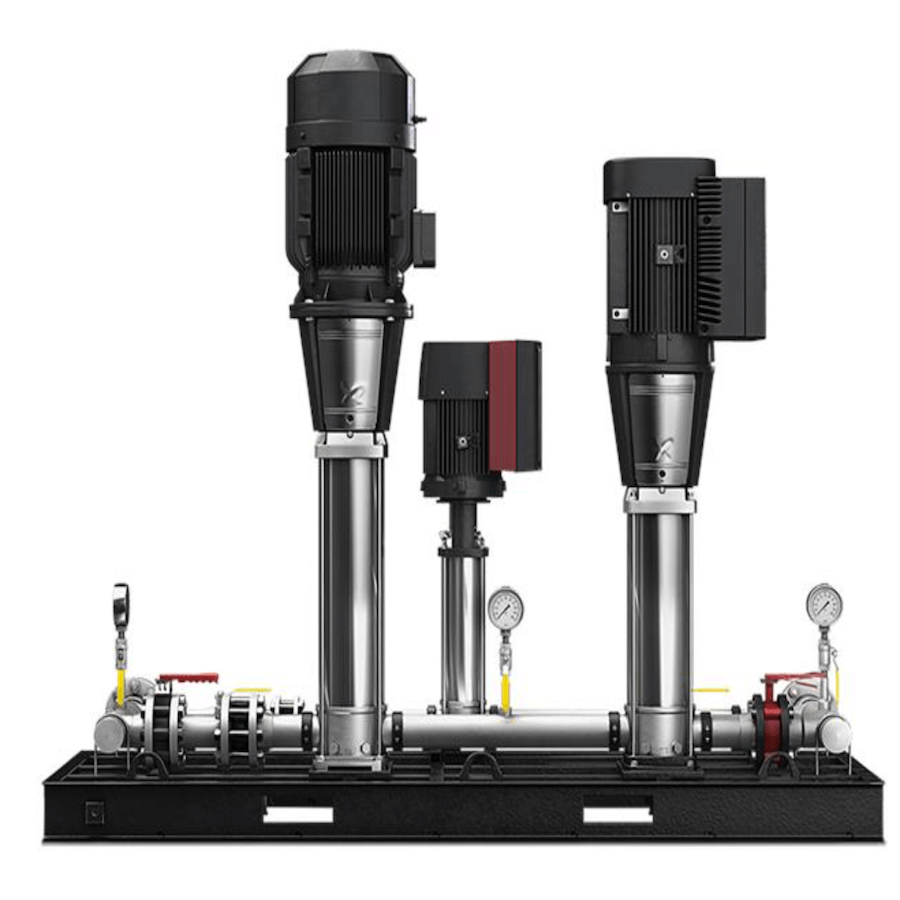

About Grundfos Hydro HP:

Hydro HP Systems are powered by CR/CRN pumps, designed with efficiency and easy maintenance in mind.  Hydro HP systems are suitable for low-flow and high-flow demands.

Low-flow demands use a 10 hp CRNE 1-23 pump to efficiently keep the piping system pressurized and to provide low-flow demands of 5-15 gpm.  This low-flow requirement is commonly needed for clean and wash applications where spot cleaning might be required during production.

For the higher system flow demands, a high-pressure, tandem series pair of CR 32 or CR 45 pumps is used.  For systems with even greater flow demands, additional high-pressure tandem pairs of pumps can be added in parallel to increase the flow capability of the Hydro HP system.  Each tandem pair is controlled as a single pump, with a maximum of six sets of tandem pairs and/or a jockey pump able to be controlled per CU 352 controller.

VFD controls are used to control the speed of the motor to provide the needed system pressure while using the minimum amount of horsepower for energy efficiency.  The VFD control also reduces pressure surging, keeping stress on the distribution piping system to a minimum.

Key Features & Benefits:

  • Efficient design, adapting to system demands
  • Vertical multistage pumps
  • Low vibration for minimal wear-and-tear
  • Thoroughly tested for reliability
  • Simple maintenance
  • Low-energy use

High Speed Single Pump Includes:

  • CRNE-HS (high-pressure pump)
  • Size: 1, 3
  • Reinforced chambers
  • Connections: FGJ, PJE, Tri-Clamp

Two Pump System In Series Includes:

  • CRNE-HS (high-pressure pump)
  • Size: 1, 3
  • Reinforced chambers
  • Connections: FGJ, PJE, Tri-Clamp

Attributes:

Flow, Q: max. 150, 250, 350 and 500 GPM systems

Head, H: max. 1675 ft

Working pressure: max. 725 psi

Liquid Temperature: 32° F to 248° F

Applications:

• Food and beverage cleaning systems
• Reverse osmosis systems
• Spraying and washing systems
• High-pressure paper shower
• Boiler feed/cleaning systems



Industry Applications:

• Food and beverage cleaning systems
• Reverse osmosis systems
• Spraying and washing systems
• High-pressure paper shower
• Boiler feed/cleaning systems
