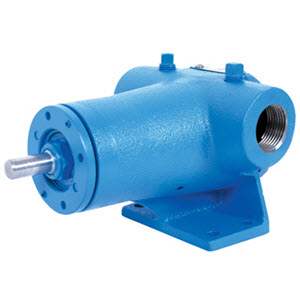

Viking Pump Model GG4195 Cast Iron Gear Pump 4-1062-2231-064

4-1062-2231-064 MFG #: 4-1062-2231-064
$1,100.80 $1,100.80 / EA
  • Note: Contact us for serial number cross reference to model number as well as special job quotes.
  • States: GA, NC, SC, TN
  • Summary: Viking Pump GG4195 Motor Speed - Port 1" NPT Opposite - Cast Iron Externals - FKM Seals - FlowMin 0 GPM FlowMax 10 GPM - PressureMax 250 PSI - Less Relief Valve
  • Series: 495 / 4195 Series Viking Motor Speed Pump
  • Type: Motor Speed
QTY
  • Details
  • Series Info
  • Industry / Applications
  • Resource Links

GG4195 Viking Motor Speed Pump Specifications

Port Size

  1”

Port Type

 NPT

Port Orientation

 Opposite

Externals

 Cast Iron

Seal Type

 Mechanical Seal

Seals

 FKM

Flow Min

 0 GPM

Flow Max

 10 GPM

Pres Max

 250 PSI

Valve

 Less Relief Valve

Gears Rotor Idler

 Iron / Iron

Shafts

 Steel

Idler Pin

 Hardened Steel

Idler Bushing

 Carbon Graphite

Shaft Bushings

 Sealed Ball Bearing

495 / 4195 Series Viking Motor Speed Pump Product Line details

Viking’s Motor Speed Product Line internal gear pumps represent a technological advance in the science of flow. Through new techniques of feeding the rotor and idler, Viking has achieved what was once considered impossible – high flow rates operating at motor speeds.

The largest size (QS) operates at reduced speeds, but still faster than other pumps of similar displacement. Higher speeds mean greater value, with the ability to move more fluid with a smaller pump. It also enables close-coupling to a motor or gearmotor, which eliminates shaft misalignment and results in longer seal and bearing life by preventing wear due to misalignment.

Industry application include Plastics, Abrasives, Sealants, Adhesives, Agricultural, Asphalt, Biodiesel, Brewing, Beverage, Chemical, Chocolate, Ethanol, Fats & Oils, Fiber, Food, Fuels, Fuel Oils, Oil Production & Refining, Paints & Coatings, Personal Care Products, Pharmaceuticals, Polymers, Polyurethane foam, Printing Inks, Pulp & Paper, Refrigeration, Rubber, Sugar, Soaps & Detergents, Water Treatment, Wind Power.

Access these resource files on Viking Pump primary site (will open in new window)

GG4195 Viking Motor Speed Pump Drawing

Brochure, Technical Service Manual and Drawings
