Pulsafeeder Eclipse Pumps

PLSFDR-ECLPS
  • : NSF/ANSI 61 Eclipse pumps can handle a wide range of volume flows, connection sizes, fluid viscosities and temperatures.
  • States: GA, NC, SC, TN

  • Details
  • Industry / Applications
  • Video
The Pulsafeeder Eclipse represents a dramatic advance in pump technology. Combining proven design principles with patented features, our pumps are safe, simple, and reliable. Structurally rugged with corrosion-resistant materials, Eclipse is an ideal fit for many corrosive liquids. From acids to bases, we cover the entire pH scale. The innovative technology behind Eclipse supports its ability to handle the most corrosive chemicals with a simple-to-service, front pull-out design. Eclipse is available with wetted components in completely non-metallic construction and 316SS. These material offerings ensure corrosion resistance over a wide range of chemicals and process conditions. These pumps are magnetically driven to eliminate mechanical seal wear and leaks associated with rotating seals. The patented bearing design promotes constant lubrication.


Chemical Compatibility

Available in PVDF or 316-SS, Eclipse pumps ensure corrosion resistance against a wide range of chemicals, making Eclipse ideally suited to handle acids, caustics, polymers, flocculants, resins, solvents & scale inhibitors.


Safety

Exposure to harsh chemicals from a leaking pump can cause respiratory issues for employees. Magnetically driven sealless Eclipse pumps offer fewer points of failure. Zero leaks prevent harsh chemicals from damaging the pump, plant personnel or other equipment.


Simple Maintenance

With just a few moving parts, Eclipse’s patented front pull out design is reliable and easy to maintain. Easy access to the inner workings enables the pump to be maintained in place with a minimum number of tools – minimizing downtime and eliminating the need to move the pump to a repair shop. Pulsafeeder’s KOP (Keep-on-Pumping) kits provide all of the spare parts required to return the pump to as-new condition.


Performance

Eclipse was specifically designed to handle harsh chemicals, making it a viable alternative to other types of pumps.


Eclipse offers

Greater efficiency, reliability and lower cost-of-ownership than centrifugal pumps operating below B.E.PLess maintenance and greater reliability than peristaltic pumpsEclipse is ideal for applications where +/- 2% metering accuracy will suffice and accuracies of 1% or better are acheivable with a closed loop system, making Eclipse is an affordable alternative to diaphragm pumps.Eclipse’s compact design and pulse-free dosing results in a smaller footprint and reduced piping sizes.


Eclipse Metallic and Non-Metallic External Gear Pumps

Pulsafeeder Eclipse Series represents a dramatic advance in pump technology, with 12 different models for medium to highly corrosive liquids used in chemical processing, petrochemical, and water treatment. Typical applications that the Eclipse series is ideal for include acids, caustics, pH control, hydrogen peroxide, ammonia, and many more.


Pulsafeeder Eclipse Pumps

Patented front pull-out design makes maintenance faster and easier, with only a few tools.Eclipse has the fewest number of parts compared to any other external gear pump on the market. Magnetically driven, with no seals to wear or replace, providing the safe and leak-free handling of highly corrosive fluids in a wide range of temperatures.316LSS for wider viscosity ranges for process chemicals.Pulsafeeder Eclipse PumpsNon-metallic product is completely non-metallic - not just lined.


Materials include:

Housing: PVDFMagnet: Neodymium encapsulated in virgin PTFEGear & Liner: Carbon reinforced PTFEShafts: Alumina CeramicBearings: Carbon Graphite or Graphite-impregnated Silicon carbideO-rings: PTFE

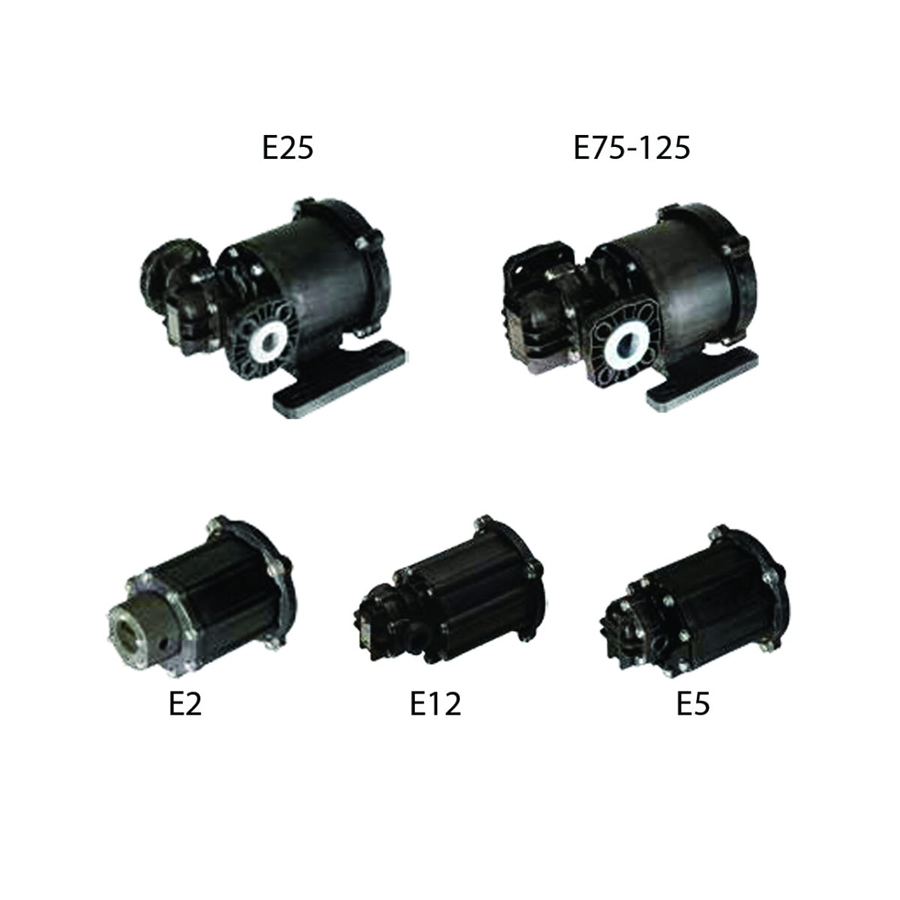

Pulsafeeder Eclipse Models

Model Flow Pressure Eclipse 2 up to: .45 gpm up to 150 psi Eclipse 5 up to: 1.6 gpm up to 150 psi Eclipse 12 up to: 3.5 gpm up to 150 psi Eclipse 25 up to: 7.4 gpm up to 150 psi Eclipse 75 up to: 22 gpm up to 150 psi Eclipse 125 up to: 33 gpm up to 150 psi

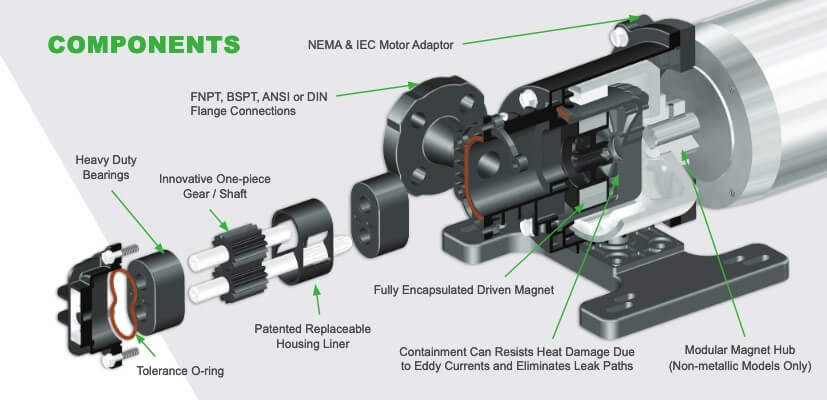

Pulsafeeder Eclipse components

Industries

  • Chemical Processing
  • Oil & Gas
  • Petrochemical
  • Wastewater Treatment
  • Water Treatment - Power
  • Water Treatment - Municipal

Typical Chemicals

  • Sodium Hypochlorite
  • Hydrogen Peroxide
  • Sulfuric Acid
  • Solvents
  • Caustic
  • Polymers
  • Dyes & Inks
  • Catalyst
  • Cleaning Agents
  • Flocculants
  • Adhesives & Resins
  • Acids
