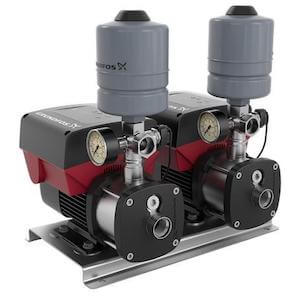

Grundfos CMBE Twin Booster Pump System
Carotek.com displays pricing in accordance with our manufacturer’s internet pricing policies. Contact us for volume discounts and quotes.
Images are representative only - actual product may differ
Grundfos CMBE Twin Booster Pump System
Part #GRNDFS-CMBE-TWN-PMP
Brand : Grundfos Pumps
- Details
- Industry / Applications
- Steam Services Offered
- Documents
About Grundfos CMBE Twin Compact Boosting Multiple Pump System
The Grundfos CMBE Twin is a booster pump for water supply and commercial boosting applications. The CMBE Twin Booster system consists of two CMBE pumps connected in parallel and mounted on a base plate with a Grundfos built manifold. The CMBE pumps will alternate to ensure the same number of operating hours until high flow is needed, and the pumps will run together.
The CMBE twin offers constant pressure and high comfort thanks to the variable-speed motor, noiseless operation and built-in protection against dry running. A pressure sensor monitoring the discharge pressure allows for the CMBE twin to adjust motor speed or signal for the second pump to start, adapting to changing system demands.
The integrated speed control enables the CMBE to maintain a constant pressure in the pipe system and offers a solution for a variety of applications.
Key Features & Benefits
- Cascade control - ensures that pump two starts in case high flow is needed
- Pump alternation - keeps operating hours even between the pumps
- Multi-Master - both pumps can be the control unit
- Dry running protection
- Grundfos manufactures all CMBE Twin components
- All-in-one solution including pump, motor, tank, pressure and flow sensor, controller, check valve, fuse box, base plate and manifold
- High efficiency ECM motor
- Available in three different CMBE sizes
- Available in both 1x115V and 1x200-240V
- Communication capable with CIM cards
- Wireless communication between the two CMBE pumps
- Low noise (57dB or less in typical use)
Attributes
- Working pressure max 145 psi
- Suction lift max. 3.28ft including suction-pipe pressure loss at a liquid temperature of 68°F
- Liquid temperature -22°F to 248°F
Applications
- Residential and commercial water supply
- Pressure boosting
- Irrigation
- Residential and commercial water supply
- Pressure boosting
- Irrigation
