Viking Pump Model HL475 Cast Iron Gear Pump 4-1412-1832-521
Carotek.com displays pricing in accordance with our manufacturer’s internet pricing policies. Contact us for volume discounts and quotes.

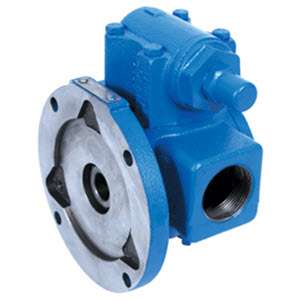

Images are representative only - actual product may differ
Viking Pump Model HL475 Cast Iron Gear Pump 4-1412-1832-521
Part #4-1412-1832-521
MFG #4-1412-1832-521
Brand : Viking Pump
Note : Contact us for serial number cross reference to model number as well as special job quotes.
States : GA, NC, SC, TN
Viking Pump HL475 Motor Speed - Port 1.5" NPT Opposite - Cast Iron Externals - Buna-N Seals - FlowMin 0 GPM FlowMax 30 GPM- PressureMax 100 PSI - Relief Valve
Series : 75 / 475 Series Viking Motor Speed Pump
Type : Motor Speed
- Details
- Industry / Applications
- Resource Links
- Series Info
HL475 Viking Motor Speed Pump Specifications
|
Port Size |
1.5” |
|
Port Type |
NPT |
|
Port Orientation |
Opposite |
|
Externals |
Cast Iron |
|
Seal Type |
Mechanical Seal |
|
Seals |
Buna-N |
|
Flow Min |
0 GPM |
|
Flow Max |
30 GPM |
|
Pres Max |
100 PSI |
|
Valve |
Relief Valve |
|
Gears Rotor Idler |
Iron / Iron |
|
Shafts |
N/A |
|
Idler Pin |
Hardened Steel |
|
Idler Bushing |
Bronze |
|
Shaft Bushings |
Bronze |
Access these resource files on Viking Pump primary site (will open in new window)
75 / 475 Series Viking Motor Speed Pump Product Line details
For compactness, less weight and simplicity of mounting, Viking’s line of close-coupled pumps are ideal for direct connecting to other pieces of equipment. The positive, smooth delivery of these pumps makes them preferred for many types of applications including filtering, circulating, transferring, lubricating or booster service.
The five sizes of Viking close-coupled pumps from 5 to 30 GPM are available in this unmounted type ready to connect on other equipment with standard NEMA C flange mounting.
All pumps are available with rotor bore to fit the shaft of a standard motor or other piece of equipment. Bores are furnished in ⅝” and ⅞”. By using a full length key between drive shaft and rotor bore, rigid and positive alignment of pump and drive shaft is assured.
This advanced design is unique in its field for it permits use of STANDARD, unmodified NEMA C flange ball bearing motors. It is extremely close-coupled, reducing needed space, cutting overall weight, eliminating bases, couplings, outboard bearings or any drive equipment and at the same time saves cost.
All sizes are equipped with opposite ports. Only two casing sizes are used for all five pumps. The two smaller pumps use one casing and the three larger pumps use the other.
Pumps are built to accept a compact, integral relief valve mounted on top of casing to maintain extreme compactness.
All pumps are available with either mechanical seal suitable for 100 PSI pressure or a lip seal suitable for 50 PSI. No modification of parts are needed to convert from one seal to the other.
