Wilden AODD Pump - A100 - 01-10363 - 13 mm (1/2") Accu-Flo™ Bolted Plastic Pump with PTFE and Neoprene
Carotek.com displays pricing in accordance with our manufacturer’s internet pricing policies. Contact us for volume discounts and quotes.

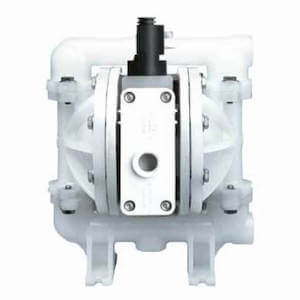

Images are representative only - actual product may differ
Wilden AODD Pump - A100P/PPPPP/TNU/TF/PTV/0150
Part #01-10363
MFG #01-10363
Carotek Price $1,466.00 / EA
Regular Price: $1,588.00, you save $122.00 (8%)Brand : Wilden AODD Pumps
States : NC, SC, VA
Wilden AODD Pump - A100 - 01-10363 - 13 mm (1/2") Accu-Flo™ Bolted Plastic Pump with PTFE and Neoprene
Series : Accu-Flo Electronic Control
- Details
- Industry / Applications
Wilden AODD Pump - A100P/PPPPP/TNU/TF/PTV/0150
13 mm (1/2") Accu-Flo™ Bolted Plastic Pump with PTFE and Neoprene
AIR INLET 1/4 FNPTLIQUID INLET 1/2 (13MM)LIQUID DISCHARGE 1/2 (13MM)CONNECTION TYPE NPT/BSPTMAX FLOW RATE PTFE 10.1 GPMMAX PRESSURE 125 PSIMAX DIAMETER SOLIDS 1/16MAX SUCTION LIFT CAPABILITY PTFE 18.7 DRYDISPLACEMENT PER STROKE PTFE 0.03 GAL
Accu-Flo™ Series Air-Operated Double-Diaphragm (AODD) Pumps give you the critical external pump control necessary for exacting applications such as batching. Featuring a direct electrical interface that utilizes electrical impulses to stroke the pump instead of differential pressure, the Accu-Flo Series provides a variable stroke rate that you can easily control as needed. To meet your applications, Accu-Flo Series pumps are available as NEMA 5-compliant and comes in a variety of voltage options.
Integrated electronic (solenoid) control Multiple signal input voltage options: 24V DC, 12V DC and 110V AC Proven, robust bolted construction
General Industrial, Oil & Gas, Paints & Coatings, Chemical Process, Hygienic, Water & Wastewater, Mining, Military & Marine, Pharmaceutical, Food & Beverage, Semiconductor and Ceramics.
