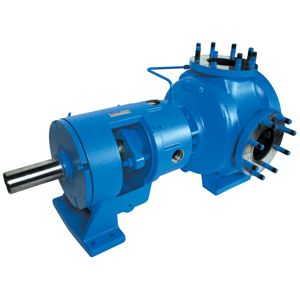

Viking Pump Model N324A Cast Iron Gear Pump 5-5550-262A-004 LH
Carotek.com displays pricing in accordance with our manufacturer’s internet pricing policies. Contact us for volume discounts and quotes.
Images are representative only - actual product may differ
Viking Pump Model N324A Cast Iron Gear Pump 5-5550-262A-004 LH
Part #5-5550-262A-004 LH
MFG #5-5550-262A-004 LH
Brand : Viking Pump
- Details
- Industry / Applications
- Resource Links
- Series Info
- LTL Shipping Charges
N324A Viking Motor Speed Pump Specifications
|
Port Size |
5” |
|
Port Type |
Class 125 ANSI Flange |
|
Port Orientation |
90 Degree |
|
Externals |
Cast Iron |
|
Seal Type |
Packing |
|
Seals |
Standard Packing |
|
Flow Min |
0 GPM |
|
Flow Max |
600 GPM |
|
Pres Max |
200 PSI |
|
Valve |
Less Relief Valve |
|
Gears Rotor Idler |
Hardened Steel / Hardened Steel |
|
Shafts |
Hardened Steel |
|
Idler Pin |
Tungsten Carbide |
|
Idler Bushing |
Tungsten Carbide |
|
Shaft Bushings |
Hardened Cast Iron |
Access these resource files on Viking Pump primary site (will open in new window)
324A / 1324A / 4324A Series Viking Pump Product Line details
Pumps are designed for a broad range of applications, from thin to thick, requiring continuous duty at pressures up to 200 PSI (14 Bar). Even higher pressures are possible with high fluid viscosities at reduced operating speeds (consult factory). They are also capable of operating under suction lift conditions and operate equally well in either direction.
The Universal Product Line has the broadest range of sealing options of all pumps built by Viking. The stuffing box on all sizes accepts packing, numerous component single mechanical seals, or a wide variety of cartridge seals.
The Universal Product Line is Viking Pump’s most versatile line of internal gear pumps due to the availability of many design and material options.
