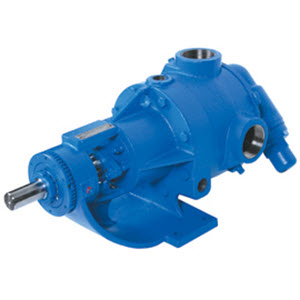

Viking Pump Model KK724 Stainless Steel Gear Pump 4-2520-2612-501

KK724 Viking Motor Speed Pump Specifications

Access these resource files on Viking Pump primary site (will open in new window)

KK724 Viking Motor Speed Pump Drawing

Brochure, Technical Service Manual and Drawings

724 / 4724 Series Viking Universal Pump Product Line details

These pumps feature 316SS construction for handling corrosive liquid applications. These pumps have additional unique features, however, which separate them from other Viking Pump series. While the wetted components are stainless steel, the footed mounting bracket is cast iron, making the 724 and 4724 Series an economical alternative to a fully stainless steel pump.

Sizes H and larger feature a jacketed bracket for the circulation of steam or hot oil. Optional jacketed head plates (sizes G and larger) and optional jacketed valves (sizes L and larger) are available to add additional jacketing as required.

The small pumps (sizes F, FH & G) are especially useful in pilot plant service, small metering applications, accurate chemical additive processing, pumping of pharmaceuticals in small capacities and for feed and product pumps on evaporators and distillation systems. They are opposite ported and available with packing or mechanical seals. The larger pumps meet the needs of moving corrosive liquids when greater capacities are required in chemical, food and other processing plants. They feature revolvable right angle casings for a variety of port orientations. They are available with packing or behind the rotor mechanical seals.
