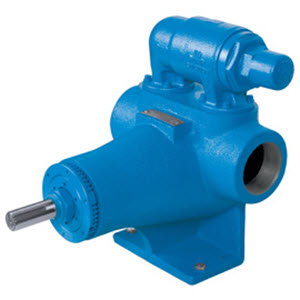

Viking Pump Model AL4195 Cast Iron Gear Pump 4-1920-2231-559
Carotek.com displays pricing in accordance with our manufacturer’s internet pricing policies. Contact us for volume discounts and quotes.
Images are representative only - actual product may differ
Viking Pump Model AL4195 Cast Iron Gear Pump 4-1920-2231-559
Part #4-1920-2231-559
MFG #4-1920-2231-559
Brand : Viking Pump
- Details
- Industry / Applications
- Resource Links
- Series Info
- LTL Shipping Charges
AL4195 Viking Motor Speed Pump Specifications
|
Port Size |
3” |
|
Port Type |
NPT |
|
Port Orientation |
Opposite |
|
Externals |
Cast Iron |
|
Seal Type |
Mechanical Seal |
|
Seals |
FKM |
|
Flow Min |
0 GPM |
|
Flow Max |
75 GPM |
|
Pres Max |
250 PSI |
|
Valve |
Relief Valve |
|
Gears Rotor Idler |
Ductile Iron / Ductile Iron |
|
Shafts |
Steel |
|
Idler Pin |
Hardened Steel |
|
Idler Bushing |
Carbon Graphite |
|
Shaft Bushings |
Sealed Ball Bearing |
Access these resource files on Viking Pump primary site (will open in new window)
495 / 4195 Series Viking Motor Speed Pump Product Line details
Viking’s Motor Speed Product Line internal gear pumps represent a technological advance in the science of flow. Through new techniques of feeding the rotor and idler, Viking has achieved what was once considered impossible – high flow rates operating at motor speeds.
The largest size (QS) operates at reduced speeds, but still faster than other pumps of similar displacement. Higher speeds mean greater value, with the ability to move more fluid with a smaller pump. It also enables close-coupling to a motor or gearmotor, which eliminates shaft misalignment and results in longer seal and bearing life by preventing wear due to misalignment.
