Griswold H-Series Self-Priming Pump
Carotek.com displays pricing in accordance with our manufacturer’s internet pricing policies. Contact us for volume discounts and quotes.

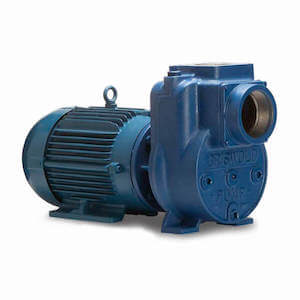

Images are representative only - actual product may differ
Griswold H-Series Self-Priming Pump
Part #PSG-GRSWLD-H
Requires QuoteTo obtain a price quote or ask a question, add item(s) to your cart and select 'Request Information or Quote' from the cart page.
Brand : Griswold Pumps
- Details
- Industry / Applications
- Documents
Griswold H Series pumps are a unique line of self-priming centrifugal pumps used for a variety of water applications. The H Series performs where other self-priming pumps can’t, and have been designed specifically to lift water up to 25 feet.
The H Series is available in two versions:
HL pumps: designed for lower flows
HH pumps: designed for higher flows
- Max Flow Rate: 325 gpm (73.8 m³/hr)
- Max Head: 260 ft (79 m)
- Max Temperature: 100°F (37.8°C)
- Max Pressure: 110 psi (7.6 bar)
- Available Materials: Iron
Griswold H Series Self Priming Pump Features
- Built-in check valve
- Maintain prime even when check valves or foot valves have failed
- High suction line keeps impeller and mechanical seal covered with water, eliminating the need to reprime the pump, as well as protects the seal from running dry
- Available with a variety of drives
- Heavy-duty cast iron bronze fitted construction
- Close-coupled JM Frame ODP or TEFC motors available
- Options available for seal materials, frame-mount options, motors, and more
Contact Carotek for detailed information on models and personalized selection assistance.
Industrial Water
