DeZURIK Knife Gate Valves

Requires Quote
  • States: NC, SC, VA
  • Summary: Carotek carries industry leading DeZurik Knife Gate Valves for a variety of industrial and municipal water applications that require high quality and unique packing designs.
  • Details
  • Industry / Applications
  • Videos

Carotek carries DeZURIK Knife Gate Valves for a variety of isolation/on-off applications to handle a wide variety of industrial applications as well as wastewater. DeZURIK’s quality and unique packing designs are just a few reasons why they are leaders in the industrial knife gate valve industry. Whether your media is liquids, paper stock, slurries, chemicals, or dry materials, the DeZURIK knife gate valve catalogue provides a solution.

As a distributor of DeZURIK valves, Carotek can assist with your needs for any of the following:

  • DeZURIK knife gate valve manual
  • DeZURIK knife gate valve parts list
  • DeZURIK knife gate valve specifications
  • DeZURIK knife gate valve installation
  • DeZURIK knife gate valve troubleshooting

Where Are Knife Gate Valves Used?

An industrial knife gate valve is a cost-effective, easy to actuate, light weight valve with a sharp edge designed to cut through the pulp and seal. Since a knife gate valve is a shut-off valve, it is used to start and stop the flow through a pipeline, primarily in fluid-based applications and settings, especially those that involve a dense material.

DeZURIK Knife Gate Valves

DeZURIK manufactures both cast and fabricated Knife Gate Valves for use in isolation/on-off applications. These valves are designed to handle a wide variety of media including liquids, paper stock, slurries, chemicals, and dry materials.

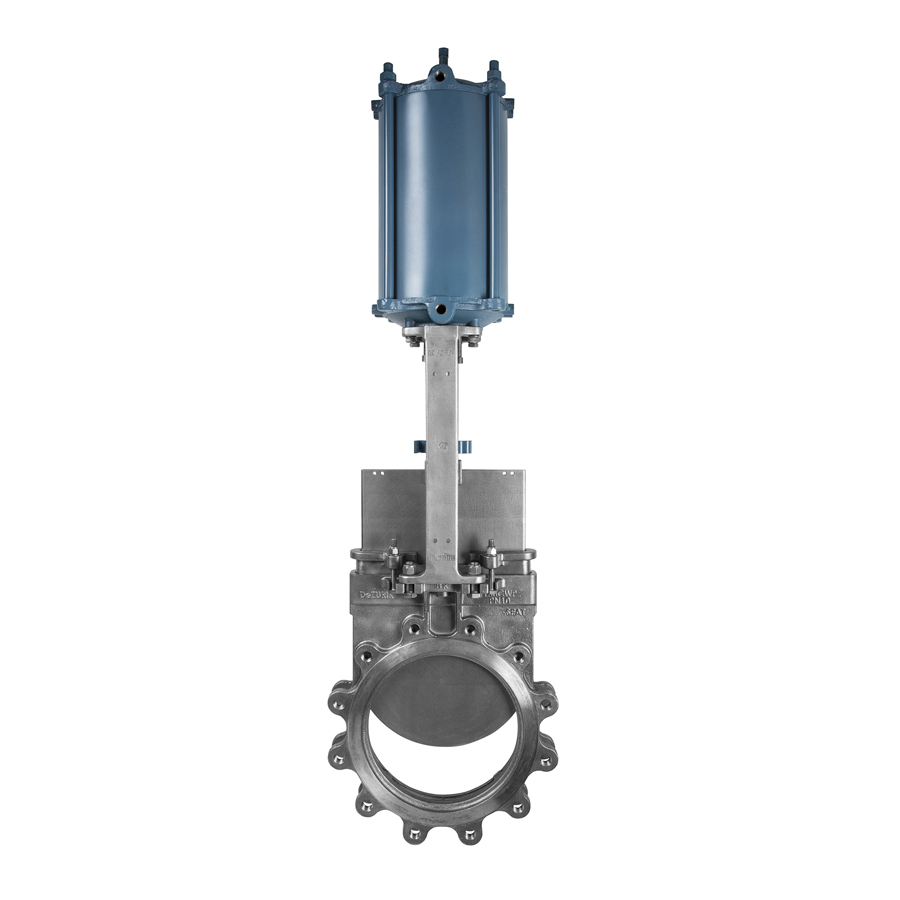

KGN and KGC Cast Stainless Steel Knife Gate Valves

DeZURIK KGN and KGC series cast stainless steel knife gate valves provide optimum performance for a variety of applications.

The KGN series provides an economical option, while KGC is a premium valve with a machined stuffing box and scraper seat for long lasting service in the toughest corrosive, abrasive liquid, slurry or dry material applications. KGC knife gate valves are available in extended service, bi-directional, metal cutting, and maximum duty designs.

KUL Urethane Lined Knife Gate Valves

KUL knife gate valves are bi-directional valves used in on-off applications handling abrasive slurries with less than 15% solids, dirty liquids and dry abrasive materials, available in a variety of urethane compounds for temperatures up to 265°F.

KSL Slurry Knife Gate Valves

KSL Knife Gate Valves bi-directional push-through style valves with resilient sleeves used as isolation/on-off valves in applications consisting of abrasive, high solids content, corrosive, wet or dry media.

KSV Severe Service Knife Gate Valves

KSV Severe Service Knife Gate Valves meet MSS SP-135, and are ASME Class 150 and 300 rated for pressures to 740 psi and temperatures to 450°F. These bi-directional valves are used in high pressure, high abrasive services.

Fabricated Knife Gate Valves

Specially fabricated knife gate valves are also available:

  • H-200- Bonneted (pressurized or un-pressurized) or H-200 bonnetless
  • any solid alloy (or alloy wetted parts construction)
  • to any US or International Standard
  • wafer or special extended face-to-face dimensions
  • pressures to 300 psi and temperatures to 2000°F
  • metal or resilient seated
  • Bonneted available for throttling applications to the full rated pressure.

Additional Knife Gate Valves

Additional DeZURIK industrial knife gate valve designs include:

  • Hydro Knife Gate Valves
  • O-Port Gate Valves
  • Special Service Gate Valves including DeZURIK KSV Double Block & Bleed Knife Gate Valves, KGY Mixing & Diverting Knife Gate Valves, KCI Coal Burner Isolation Valves, KLS Level Sensor Isolation Valves; Hilton H-290 Material Handling Knife Gate Valves, Coal Burner Isolation Valves, and H-2200 Diverter Knife Gate Valves.
  • Special Construction Gate Valves including Hilton Square/Rectangular Port Knife Gate Valves, Customer Fabricated Gate Valves, H-110 Wedge Gate Valves, H-500B Bonneted Slide Gate Valves and High Pressure/Temperature Knife Gate Valves.
water treatmentsewage treatmentwater distributionpump stationspulp and paperchemical and petrochemicalminingpowerhydropower damsprocess industries
