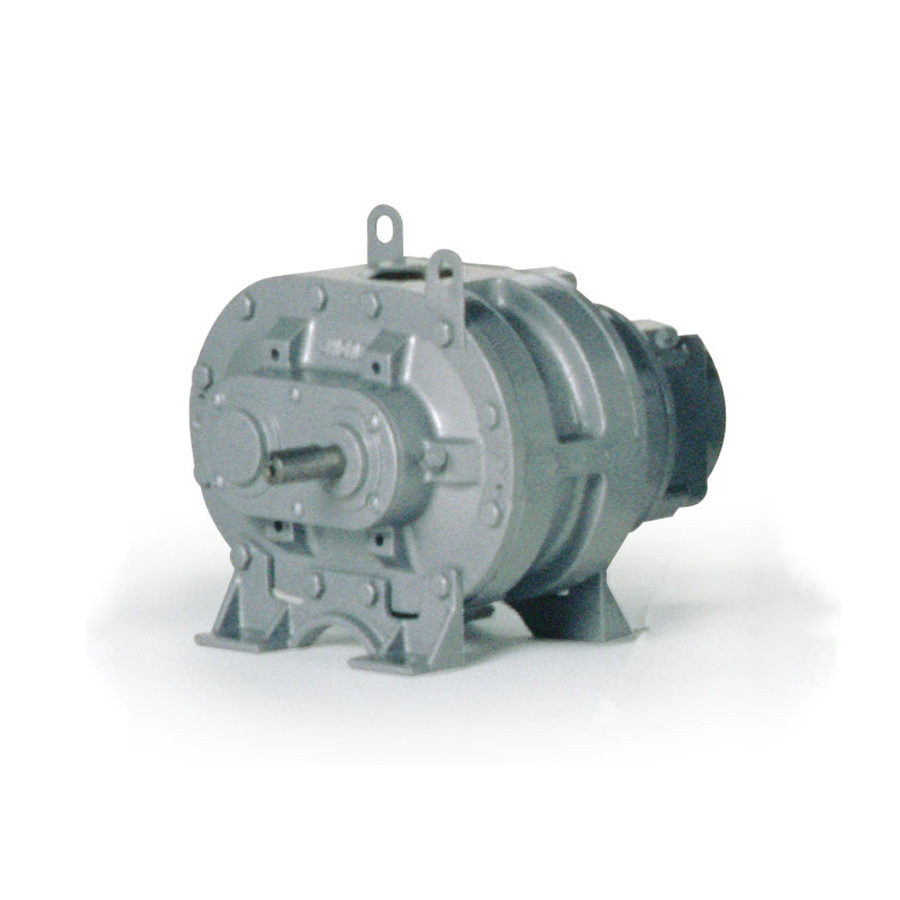

Sutorbilt Legend DSL Industrial Rotary Positive Displacement PD Air Blower 3H DSL Horizontal - Right Hand Center Mount - 3H-RHC DSL

3H-RHC DSL MFG #: 3H-RHC DSL
Requires Quote
  • Series: Sutorbilt Legend DSL Series
  • States: NC, SC, TN, VA
  • Summary: High Pressure/Vacuum Blower Size: 3H DSL (Dual Splash Lubrication) SPECIFICATIONS: Inlet & Outlet Dia: 1.25"-S (Screwed Connections Standard) Max Speed: 3600 RPM Min Speed: 1760 RPM Max Pressure: 15 PSIG Max Vacuum: 16 Hg Max Volume: 138 CFM, Size: 3H DSL (Dual Splash Lubrication) SPECIFICATIONS: Inlet & Outlet Dia: 1.25"-S (Screwed Connections Standard) Max Speed: 3600 RPM Min Speed: 1760 RPM Max Pressure: 15 PSIG Max Vacuum: 16 Hg Max Volume: 138 CFM

QTY
  • Details
  • Old Product Numbers
  • Video
Make/Model: Sutorbilt Legend 3H DSL (GABHDRD)Size: 3H DSL (Dual Splash Lubrication)Inlet & Outlet Dia: 1.25"-S (Screwed Connections Standard)Max Speed: 3600 RPMMin Speed: 1760 RPMMax Pressure: 15 PSIGMax Vacuum: 16 HgMax Volume: 138 CFMDrive End Lubrication: OilGear End Lubrication: OilLubrication Quantities: Gear Side-1.1 PtDrive Side: .6 Pt
GABHDRD
