Circumferential Piston Pumps – TRA10, TRA20 and Revolution

Viking Pump Hygienic Revolution™ pump along with the TRA10 and TRA20 are based on a reliable positive displacement circumferential piston pumping principle.

These pumps are constructed from cast iron or stainless steel. The TRA10, TRA20 and Revolution™ are all dimensionally interchangeable with Waukesha® for comparable models, making it easy to upgrade or repair pumps.

TRA10 Hygienic Pump

Cleanability
    •    Easy disassembly for easy COP (Clean Out of Place)
    •    Designed to 3A standards

Performance
    •    Efficient handling for low & high viscosity applications
    •    Exclusive, non-galling WFT 808® alloy rotors standard; permits running at tighter clearances
    •    High strength 17-4 PH single piece shaft standard on 0300 and larger
    •    Helical gears, improving load carrying capabilities

Maintenance
    •    Drop-in-place with TRA®20 & comparable manufacturer models
    •    Interchangeable service parts with comparable manufacturer models
    •    Easy disassembly

Specifications
    •    Capacity – 0 to 450 GPM; 0 to 102 m3/h
    •    Pressure – 0 to 400 PSI; 0 to 27 Bar
    •    Temperature – 0 to 300 °F; 0 to 150 °C
    •    Viscosity – 0 to 910,000 SSU; 0 to 200,000 cST

TRA20 Hygienic Pump

Cleanability
    •    CIP (Clean In Place) design optional
    •    Free draining cover with flat body profile option
    •    Sealed shaft with o-ring on rotor & rotor nut

Performance
    •    Efficient handling for low & high viscosity applications
    •    Exclusive, non-galling WFT 808® alloy rotors standard; permits running at tighter clearances
    •    High strength17-4 PH single piece shaft standard
    •    Improved load carrying capabilities

Maintenance
    •    Drop-in-place with TRA®10 & comparable manufacturer models
    •    Interchangeable service parts with comparable manufacturer models
    •    Stainless steel bearing retainers standard, prevent rusting

Specifications
    •    Capacity – 0 to 450 GPM; 0 to 102 m3/h
    •    Pressure – 0 to 500 PSI; 0 to 34 Bar
    •    Temperature – 0 to 300 °F; 0 to 150 °C
    •    Viscosity – 0 to 910,000 SSU; 0 to 200,000 cST

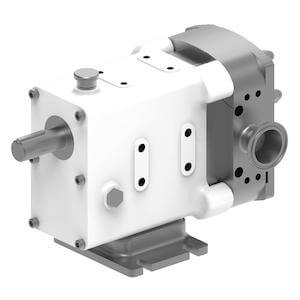

Revolution Hygienic Pump

Cleanability
    •    Efficient CIP (Clean In Place) ability is standard for all Revolution pumps
    •    Self draining pump head from innovative cusps & cusp reliefs
    •    Innovative seal design with no dead zones & a dynamic leak path
    •    No dead zones on front cover

Maintenance
    •    Fast, front loading seal changes while pump is still in line
    •    Front access shimming for setting rotor clearance significantly reduces maintenance time
    •    Convenient preventive maintenance parts kits available

Performance
    •    Improved volumetric efficiency in low & high viscosity applications
    •    Up to 15% better flow performance than competitors’ CIP configuration with CPP version
    •    Gentle handling of solids & shear sensitive products
    •    Long-life durability from heavy duty shafts, bearings & helical gears
    •    Less overhung load

Specifications
    •    Capacity – 0 to 761 GPM; 0 to 173 m3/h
    •    Pressure – 0 to 450 PSI; 0 to 31 Bar
    •    Temperature – 0 to 300 °F; 0 to 150 °C
    •    Viscosity – 0 to 2,000,000 SSU; 0 to 440,000 cST
