Viking Pump Model H124A Cast Iron Gear Pump 4-1462-261A-502
Carotek.com displays pricing in accordance with our manufacturer’s internet pricing policies. Contact us for volume discounts and quotes.

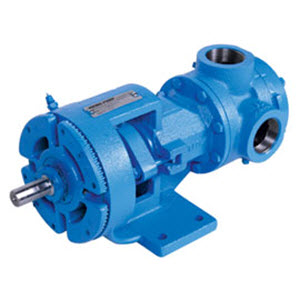

Images are representative only - actual product may differ
Viking Pump Model H124A Cast Iron Gear Pump 4-1462-261A-502
Part #4-1462-261A-502
MFG #4-1462-261A-502
Brand : Viking Pump
Note : Contact us for serial number cross reference to model number as well as special job quotes.
States : GA, NC, SC, TN
Viking Pump H124A Universal - Port 1.5" NPT 90 Degree - Cast Iron Externals - Standard Packing Seals - FlowMin 0 GPM FlowMax 15 GPM - PressureMax 200 PSI - Relief Valve
Series : 124A / 1124A / 4124A Series Viking Universal Pump
Type : Universal
- Details
- Industry / Applications
- Resource Links
- Series Info
H124A Viking Motor Speed Pump Specifications
|
Port Size |
1.5” |
|
Port Type |
NPT |
|
Port Orientation |
90 Degree |
|
Externals |
Cast Iron |
|
Seal Type |
Packing |
|
Seals |
Standard Packing |
|
Flow Min |
0 GPM |
|
Flow Max |
15 GPM |
|
Pres Max |
200 PSI |
|
Valve |
Relief Valve |
|
Gears Rotor Idler |
Iron / Iron |
|
Shafts |
Steel |
|
Idler Pin |
Hardened Steel |
|
Idler Bushing |
Carbon Graphite |
|
Shaft Bushings |
Carbon Graphite |
Access these resource files on Viking Pump primary site (will open in new window)
124A / 1124A / 4124A Series Viking Universal Pump Product Line details
The Universal Product Line has the broadest range of sealing options of all pumps built by Viking. The stuffing box on all sizes accepts packing, numerous component single mechanical seals, or a wide variety of cartridge seals. The Universal Product Line is Viking Pump’s most versatile line of internal gear pumps due to the availability of many design and material options.
• 1124A Series™, 1124AE Series™, 1324A Series™: This NEW Universal Seal Product Line comes with the O-Pro Barrier Seal factory installed. The Universal Product Line combines the tested reliability of the Universal pump & O-rings to create a robust seal and lubrication chamber, all in one. Viking Pump is the leader in internal gear innovation and the latest development is the O-Pro™ Seal technology.
• Positive Displacement Internal Gear pumping principle handles a broad range of viscosities with constant flow rate
• Axial rotor thrust is controlled by double row ball bearing or tapered roller bearings; a bushing provides a secondary point of radial shaft support
• Rotatable bearing housing provides easy rotor end clearance adjustment for viscosity or to compensate wear
• Numerous material options are available for bushings, idler pins, shafts, rotors, idlers and elastomers
• Gear and pump geometry has been optimized based on more than 100 years of experience
• Footed cast iron bracket provides rigid mounting to help maintain alignment, which extends seal and bearing life
• Can use direct drive, gear reducer or gearmotor drive, or belt-drive
• Pressure relief valve standard on all except RS size pumps; less valve / plain head option available
