Wilden AODD Pump - P200 - 02-10580 - 25 mm (1") Pro-Flo® Series Bolted Plastic Pump with PTFE and Neoprene
Carotek.com displays pricing in accordance with our manufacturer’s internet pricing policies. Contact us for volume discounts and quotes.
Images are representative only - actual product may differ
Wilden AODD Pump - P200/KKPPP/TNU/TF/KTV
Part #02-10580
MFG #02-10580
Carotek Price $3,251.00 / EA
Regular Price: $3,521.00, you save $270.00 (8%)Brand : Wilden AODD Pumps
States : NC, SC, VA
Wilden AODD Pump - P200 - 02-10580 - 25 mm (1") Pro-Flo® Series Bolted Plastic Pump with PTFE and Neoprene
Series : Pro-Flo
- Details
- Industry / Applications
Wilden AODD Pump - P200/KKPPP/TNU/TF/KTV
25 mm (1") Pro-Flo® Series Bolted Plastic Pump with PTFE and Neoprene
AIR INLET 1/4 FNPTLIQUID INLET 1 (25MM)LIQUID DISCHARGE 1 (25MM)CONNECTION TYPE ANSIMAX FLOW RATE TPE 46 GPMMAX PRESSURE 125 PSIMAX DIAMETER SOLIDS 1/16MAX SUCTION LIFT CAPABILITY TPE 7.9 DRYDISPLACEMENT PER STROKE TPE 0.06 GAL

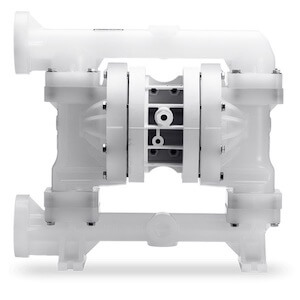

The Wilden® bolted plastic air-operated double-diaphragm (AODD) pump combines maximum performance and efficiency with superior containment. Wilden's bolted-construction pumps offer improved flow rates and a redesigned liquid path that reduces internal friction for maximum output and longer diaphragm life.
DIN or ANSI flanged inlet/discharge liquid connections
Decades of proven performance Bolted construction for superior containment Large-solids passage High suction lift Ease of operation and maintenance Increased on/off reliability Longest Mean Time Between Repair (MTBR)
General Industrial, Oil & Gas, Paints & Coatings, Chemical Process, Hygienic, Water & Wastewater, Mining, Military & Marine, Pharmaceutical, Food & Beverage, Semiconductor and Ceramics.
