Almatec Stainless Steel AODD Pumps - CHEMICOR Series
Carotek.com displays pricing in accordance with our manufacturer’s internet pricing policies. Contact us for volume discounts and quotes.
Images are representative only - actual product may differ

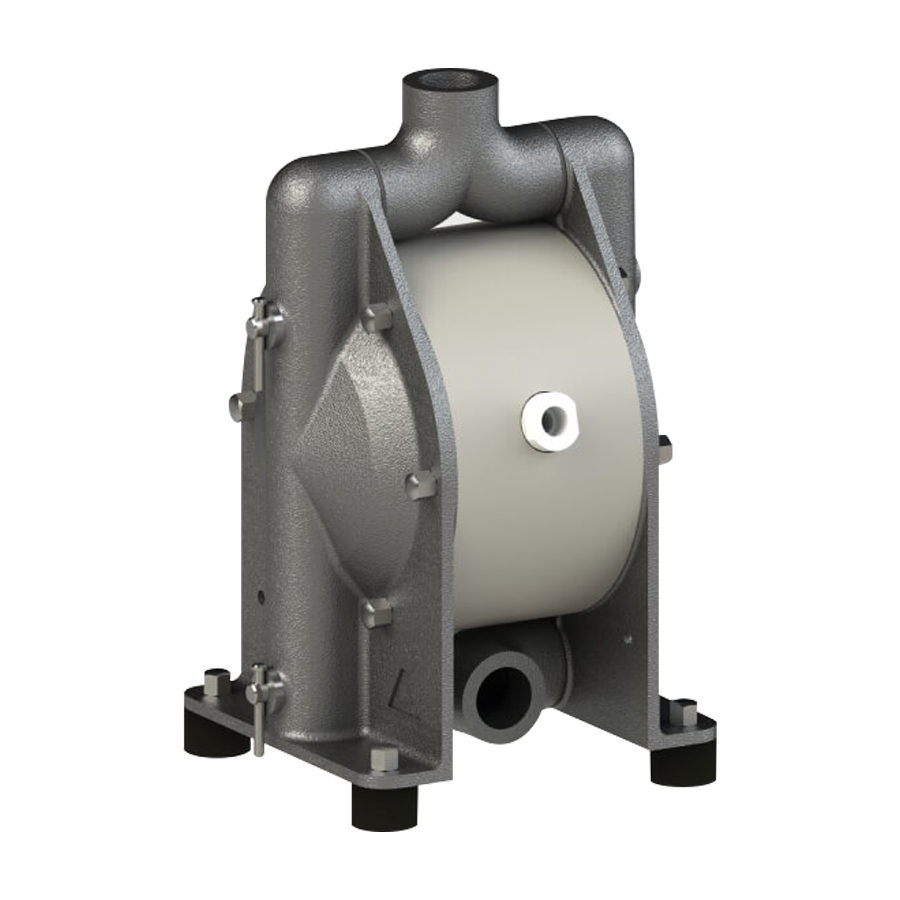

Almatec Stainless Steel AODD Pumps - CHEMICOR
Part #PSG-ALM-CHEM
Requires QuoteTo obtain a price quote or ask a question, add item(s) to your cart and select 'Request Information or Quote' from the cart page.
Brand : Almatec Pumps
States : NC, SC, VA
The Almatec Chemicor Stainless Steel AODD pump were designed with special attention to the shape of the product chambers. As a result, Chemicor offers soft changes in direction, smooth flows and no dead corners.
- Details
- Industry / Applications
CHEMICOR Series pumps are manufactured from stainless steel 1.4408/SS316 (G-X 6 CrNiMo 18 10), which is a cast steel that is resistant to corrosion and acids, and is frequently used for fittings and pump casings because of its good general chemical stability. This material in a precision lost-wax casting is used for the wetted housing parts of the CHEMICOR Series. The lost-wax process is a complex casting process yielding a smooth and dense surface with increased resistance to corrosion Contact Carotek for detailed information on models and personalized selection assistance.
Features and Benefits:
- Three sizes: AD 20, AD 32, AD 50
- Max. capacities 4.5 / 9 / 24 m3 /h (19 / 38 /105 gpm)
- Wetted housing parts made of stainless-steel precision casting 1.4408
- Special shape of the product chambers
- Pump casing with only two joint faces
- Freely turnable suction and discharge ports
- No drives, rotating parts or shaft seals
- Ball valves for liquids containing solids
- Maintenance-free PERSWING P® air control system without dead center
- Composite diaphragms with integrated metal core and no diaphragm discs
- Self-priming and dry running
- Gentle displacement
- Can be infinitely controlled via the air volume
- Unattended operation with long service life
- Compact design
- Easy to startup
- Integrated muffler
- Models available with FDA, USP Class VI, EC1935/2004, ATEX approval
- Optional equipment available
ADX - THE NEW STAINLESS STEEL PUMP SERIES
ADX20 AND ADX25 SIZES NOW AVAILABLE
Introducing the new Almatec® ADX Series Stainless-Steel Air-Operated Double- Diaphragm (AODD) Pump for industrial applications. Developed to replace legacy Almatec CHEMICOR AD Series pumps, the new ADX Series is currently available in ADX20 (3/4") and ADX25 (1") sizes, with additional sizes under development.
Features and Benefits:
- Striking, improved design with the mass required for an oscillating pump and proven internals
- Wetted housing parts constructed from stainless-steel precision casting 1.4408 (SS316)
- Non-wetted air area available in three different plastic materials – polyamide, conductive polyamide and conductive polyethylene – to meet a variety of applications and temperatures
- Available in two variations that meet the ATEX requirements of directive 2014/34/EU for operating temperatures up to 80°C (176°F) or 120°C (248°F)
- Free rotating suction and discharge ports
- Valve stops redesigned for simplified maintenance, improved cleaning and increased safety
- New flange option (DIN and ANSI), welded in a compact design in a defined position
- Additional connection options (sanitary threads, Tri-Clamp, open butt welding)
- Available with monitoring systems such as stroke counting, diaphragm sensor and barrier chamber system
- Improved sealing and bi-directional diaphragm clamping increases safety
- Available in ADX20 (3/4") and ADX25 (1") sizes; both sizes are identical in construction but come equipped with different suction and discharge ports
