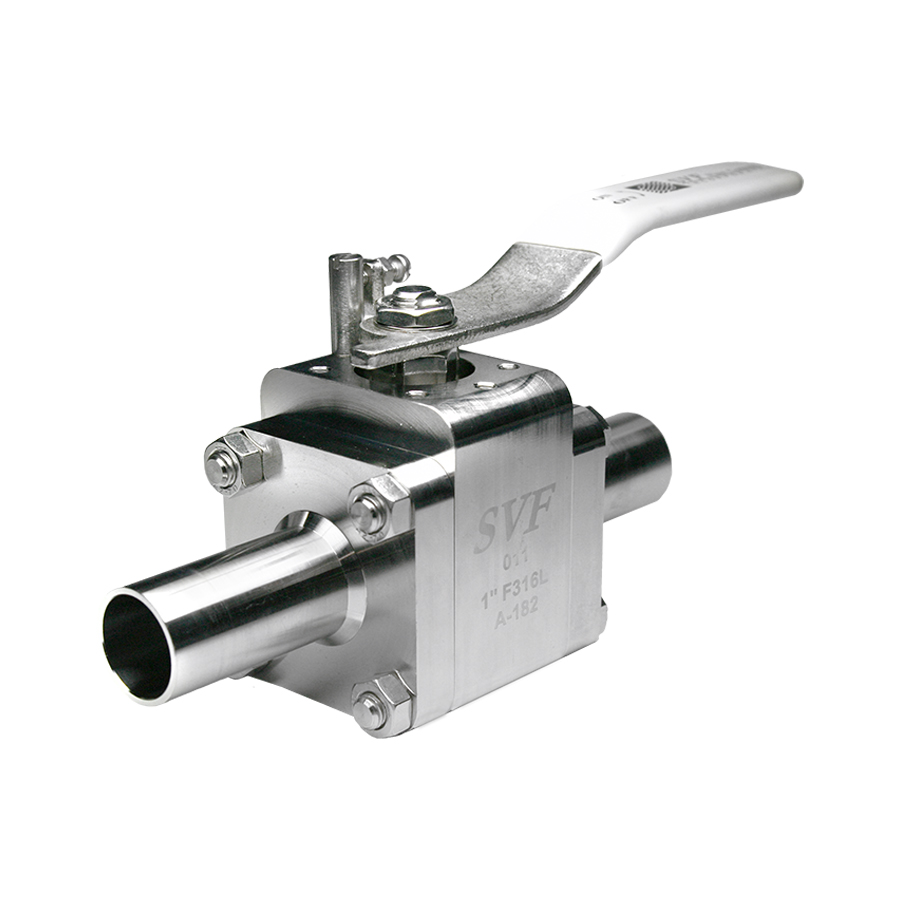

SVF Sanitary Valves
Part #SVF-SNTRY
Requires QuoteTo obtain a price quote or ask a question, add item(s) to your cart and select 'Request Information or Quote' from the cart page.
Brand : SVF Flow Controls - Valves - Actuators
- Details
- Videos
- Industry / Applications
- Products
- Documents
CleanFlow™ high purity valves specifically engineered to meet the demanding requirements of pharmaceutical, biotech, food & beverages industries where particle generation and contamination can threaten the outcome of processing.
CleanFLOW is for pharmaceutical and clean steam applications. CleanTECH is for semiconductor, food & beverage, dairy, flavoring and cosmetic & fragrance applications.
High purity sanitary ball valves are flow control devices that meet the industry criteria for purity of materials and design. Valves in high purity processes are used in two broad areas of application:
Valves that are in direct contact with the final (or intermediate) product.
Valves that are not in contact with the final (or intermediate) product. These applications are in “support systems” such as handling clean steam for cleaning and temperature control.
Hygienic Ball Valve Advantages:
Ball valves are well proven in the most rigorous applications. Some key advantages of the design include:
Economical-compared to most other valve designsHigh flow rate through an unobstructed flow pathQuick,quarter-turn operationEasy to automate pneumatically or electricallyInherently flexible to meet a wide range of pressures and temperaturesSimple maintainabilitySelf-flushing design
PharmaceuticalBiotechFood/Beverage
CleanFLOW Design Features
SB7
Three-Piece CleanFLOW™ High Purity Ball Valve, ASME-BPE compliant, Sizes 1/2” ~ 6”Complete 316L Stainless Steel cast constructionBuilt-In ISO 5211 direct mounting pad for easy automationDrainable design with “Tube-ID” dimensionsControlled delta ferrite chemistryStandard interior finish is 20Ra or betterExclusive “Fine Adjust” handle for precise positioning
SB7F
Three-Piece CleanFLOW™ High Purity Forged Ball Valve, ASME-BPE compliant, Sizes 1/2” ~ 4”Complete 316L Stainless Steel cast constructionBuilt-In ISO 5211 direct mounting pad for easy automationDrainable design with “Tube-ID” dimensionsEncapsulated body seals to facilitate welding without disassemblyStandard TFM1600™ seat material complies with 21 CFR 177.1550End connections include Tri-Clamp and Extended Tube O.D.
TSB7
CleanFLOW™ Multi-Ported, High Purity Ball Valve, ASME-BPE compliant, Sizes 1/2” ~ 4”Three-piece ""Swing-Out"" design offers easy access for in-line maintenanceISO 5211 mounting pad for easy automationEnd connections include Tri-Clamp and Extended Tube O.D.Controlled delta ferrite chemistryEncapsulated body seals to facilitate welding without disassemblyExclusive “Fine Adjust” handle for precise positioning
TSB7F
CleanFLOW™ Multi-Ported Ball Valve, ASME-BPE compliant, Sizes 1/2” ~ 4”Complete 316L Stainless Steel forged constructionISO 5211 mounting pad for easy automationEnd connections include Tri-Clamp and Extended Tube O.D.ETO ends are designed for orbital weldingControlled delta ferrite chemistryEncapsulated body seals to facilitate welding without disassemblyExclusive “Fine Adjust” handle for precise positioning (Sizes 1/2"" ~ 2"")Cavity filled TFM1600™ seat option available
SB79
Three-Piece CleanFLOW™ Hastelloy Ball Valve, ASME-BPE compliant, Sizes 1/2” ~ 6”Drainable design with “Tube-ID” dimensionsISO 5211 mounting pad for easy automationEncapsulated body seals to facilitate welding without disassemblyEnd connections include Tri-Clamp and Extended Tube O.D.ETO ends are designed for orbital weldingExclusive “Fine Adjust” handle for precise positioning
OPUS
CleanFLOW™ High Perfomance Steam Trap Test Valve, Sizes 1/2” ~ 4”Multifunctional valve providing three states of fluid controlMeets ASME-BPE guidelines for full flow, drainability, surface finish and materialsDelivers full flow of steam through ""Tube I.D."" portingAvailable with a selection of trap connections and system connectionsDesigned exclusively for the high purity pharmaceutical marketMaterials include 316L (cast and forged), Hastelloy and AL6XN
Product
CleanTECH Design Features
SB9
Three-Piece CleanTECH™ Sanitary Ball Valve, Sizes 1/2” ~ 4”Three piece investment cast stainless steelBuilt-In ISO 5211 direct mounting pad for easy actuationEnd Connections include Extended Tube O.D. or Tri-ClampAll materials comply with applicable ASTM material specifications and FDA, USDA and 3A requirements“Tube-ID” flow path for drainabilityBlowout proof stem adds safety & reliabilityTFM1600™ seat and body seal material complies with FDA CFR Title 21 Part 177.1550Optional TFM1600™ cavity filled seat available (SBC9)
SB6
Three-Piece CleanTECH™ High Purity Clamp End Ball Valve, Sizes 1/2” ~ 4”TFM1600™ seat material and PTFE body seal material complies with FDA CFR Title 21 Part 177.1550Clamp tube ends for easy valve removalAll materials comply with applicable ASTM material specifications and FDA, USDA and 3A requirementsBlowout proof stem adds safety & reliabilityLocking Device helps prevent accidental operation
