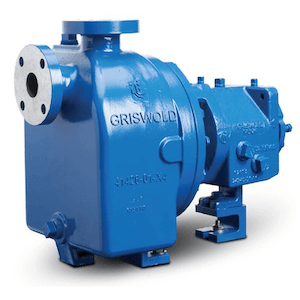

Griswold 811SP Self Priming Pump
Part #PSG-GRSWLD-811SP
Requires QuoteTo obtain a price quote or ask a question, add item(s) to your cart and select 'Request Information or Quote' from the cart page.
Brand : Griswold Pumps
- Details
- Industry / Applications
- Documents
Griswold 811SP Self Priming Series is a line of centrifugal pumps designed for robust performance in harsh self-priming applications. With full back-end interchangeability with Griswold's 811 ANSI Series, all of the impeller material and back pull-out options of the 811 ANSI Series are available with each CD4MCuN 811SP case.
- Max Flow Rate: 1,300 gpm (295 m³/h)
- Max Head: 380 ft (115 m)
- Max Temperature: 500°F (260°C)
- Available Materials: CD4MCuN
Griswold 811SP Self Priming Pump Features
- Component interchangeability with Griswold 811 ANSI Series ASME B73.1 pumps
- Designed to meet the requirement of ASME B73.1
- Extra-large capacity, epoxy-coated oil sump
- Quick priming time and easy drainage
- Dynamically balanced impellers increase pump life cycle
- Casing retains priming fluid during siphon conditions
- Heavy-duty power frames
- Magnetic power frame drain plug
- Fully open impellers with rear-adjustment capability
- Wide variety of mechanical seal options
- High-quality, genuine, certified parts
- Part-for-part interchangeability with select competitor models
- Easy retrofit from Griswold 811 ANSI Series pumps and select competitor models
- Available with steel, stainless steel, or composite baseplates
- Performance validated in a test lab certified per Hydraulic Institute (HI) 14.6
- Material certifications per ASTM
- Easy service of one-piece casing with access holes
Contact Carotek for detailed information on models and personalized selection assistance.
Griswold meets the needs of many industry applications operational challenges in the safest, most efficient and profitable way possible.
- Chemical Process
- Oil & Gas
- Energy
- General Industrial
- Mining
- Water
