Beco Compact Plate A600 Sanitary Plate Filter Press
Carotek.com displays pricing in accordance with our manufacturer’s internet pricing policies. Contact us for volume discounts and quotes.
Images are representative only - actual product may differ

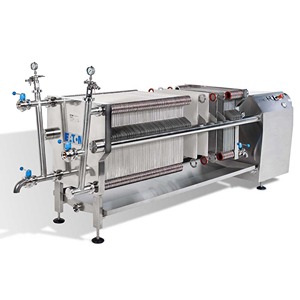

Beco Compact Plate A600 Sanitary Plate Filter Press
Part #BC-A600
Requires QuoteRfq_TooltipMessage
Brand : Eaton Filtration
Series : BECO
States : GA, NC, SC, TN, VA, AZ, NM, TX, LA, OK, AR, MS, AL, FL
BECO COMPACT PLATE A600 filter is a particularly high-class multi sheet filter with various equipment options.
- Details
- Industry / Applications tab
- Documents
BECO COMPACT PLATE A600 filter is a particularly high-class multi sheet filter with various equipment options.
BECO COMPACT PLATE A600 depth filtration system is used for liquids with large variability. The system utilizes different filter elements and a wide range of different depth filter sheets for applications in the biotechnology, chemical, cosmetics, and food industries.
key features
- High flexibility through the simple adaptation of the filter area from 7.10 to 745.93 ft² (0.66 to 69.3 m²) to the respective application
- Variable application options through the use of filter plates, feeding plates and cake frames.
- The filter can be used as sheet filter, pre-coating filter or as a combination of both.
- Easy handling and good cleanability thanks to ergonomic design, smooth surfaces and open support grid of filter plates
- Low drip loss due to the hydraulic tightening unit with automatic subsequent pressing; Hydraulic unit available electrically or pneumatically operated
- Wide range of accessories such as fittings and riser pipes complement the system to a unit ready for connection
- Other designs and further components for expansion to complete systems are available, depending on requirements
Industries include Biotechnology, Chemical Industries, Cosmetics Industries, Food Industries.
