CycloBlower Helical Rotary Screw Blowers
Carotek.com displays pricing in accordance with our manufacturer’s internet pricing policies. Contact us for volume discounts and quotes.
Images are representative only - actual product may differ

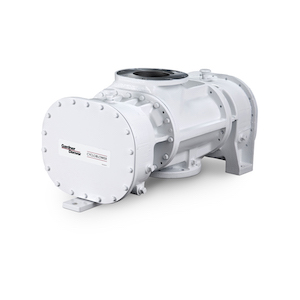

CycloBlower Helical Rotary Screw Blowers
Part #GD-CB
Requires QuoteTo obtain a price quote or ask a question, add item(s) to your cart and select 'Request Information or Quote' from the cart page.
Brand : Gardner Denver
States : NC, SC, TN, VA
Gardner Denver CycloBlower is the Original rotary screw blower, providing proven results for more than 60 years. This highly efficient screw blower provides quality and dependability in multiple applications.
- Details
- Industry / Applications
Specifications:
Pressure up to 20 psig Wet Vacuum up to 17 inHg Dry Vacuum up to 24 inHg Flows up to 6700 cfm
Description:
Increased efficiencies & energy savings over straight lobe blowers Higher pressure & vacuum performance capabilities Proven performance & dependable quality Reduced pulsation & noise levels Oil-free air/gas delivery Efficient, shock-free compression Long service life Engineered for greater performance in continuous duty applications
Features:
Helical two-lobe main rotor and four-flute gate rotor milled from ductile iron One piece, high strength housing Dual Splash Lubrication Fitted with Proprietary Inpro Seals - bearing isolator seals (5CDL, 7CDL, 9CDL, 11CDL) Labyrinth-type shaft air seals Mechanical seal option for gas applications Helical timing gears Anti-friction bearings Manufactured under rigid ISO 9001 quality standards and tested to meet strict performance requirements Backed by local network of experienced and trusted sales and service professionals
Benefits:
Energy savings made possible by unique screw design One piece housing resists deflection to retain accurate running tolerances between rotors Contoured porting provides smooth air flow Dual splash lubrication for reduced maintenance intervals and superior durability Inpro Seals offer premier protection against oil leaks Air Seals provide a minimum of controlled leakage of air or gas Mehanical Seal option for gas applications Helical timing gears provide quite, accurate operaiton Anti-friction bearings carry shaft load in all models Manufactured under rigid ISO 9001 quality standards and tested to meet strict performance requirements Backed by local network of experienced and trusted sales and service professionals
Models:
3CDL5, 3CDL8, A5CDL5, A5CDL9, A5CDL13, 5CDL5, 5CDL9, 5CDL13, 7CDL11, 7CDL14, 7CDL17, 9CDL13, 9CDL18, 9CDL23, 11CDL23, 11CDL27, 11CDL31
Industrial ManufacturingPlasticsPulp & PaperWastewater TreatmentPneumatic ConveyingIndustrial ProcessingPlastic Molding and Material Handling
