- Summary: Wilden AODD Pump - PS220 - 02-12926 - 25 mm (1") Pro-Flo® SHIFT Series Bolted Stainless Steel Pump with Teflon and Wilflex
- Series: Pro-Flo Shift
- Industry / Applications

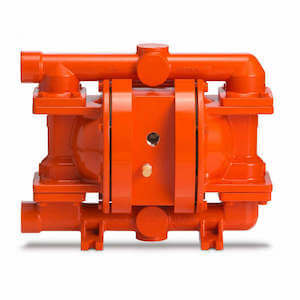

Wilden AODD Pump - XPS220/SSAAA/TWS/TF/STF
25 mm (1") Pro-Flo® SHIFT Series Bolted Stainless Steel Pump with Teflon and Wilflex
AIR INLET 1/2 FNPTLIQUID INLET 1 (25MM)LIQUID DISCHARGE 1 (25MM)CONNECTION TYPE NPT/BSPTMAX FLOW RATE PTFE 52 GPMMAX PRESSURE 125 PSIMAX DIAMETER SOLIDS 1/4MAX SUCTION LIFT CAPABILITY PTFE 17 DRYDISPLACEMENT PER STROKE RUBBER 0.30 GAL
The Wilden® bolted metal pump, also known as FIT, sets the new standard for pump performance. Featuring an enhanced flow path design, Wilden's bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improved diaphragm life. Wilden's bolted pumps are also designed for superior containment and have the exact bolt down footprint and inlet/discharge connections as Wilden clamped pumps for easy replacement.
NPT or BSPT threaded inlet/discharge liquid connections (PS220) DIN or ANSI flanged inlet/discharge liquid connections (PS230) that don't require welding or nipple attachment
Featuring the energy-efficient Pro-Flo® SHIFT ADS Greater flow - more gallons pumped per SCFM Reduced air consumption and kilowatt usage Largest chemical compatibilities Portable and submersible Large-solids passage High suction lift Ease of operation and maintenance Flexible internal adjustment on manifolds Increased on/off reliability Longest Mean Time Between Repair (MTBR)
General Industrial, Oil & Gas, Paints & Coatings, Chemical Process, Hygienic, Water & Wastewater, Mining, Military & Marine, Pharmaceutical, Food & Beverage, Semiconductor and Ceramics.
