Wilden AODD Pump - PS400/PPPPP/TWS/TF/PTV

04-13415 MFG #: 04-13415
$3,369.96 $3,369.96 / EA
  • PROMOTION: 15% off Wilden Parts when purchased with any Wilden Pump
  • SHIPSFREE: On UPS Ground through 12/30/20 - promo code: FREESHIPWILDEN*
  • States: NC, SC, VA
  • Summary: Wilden AODD Pump - PS400 - 04-13415 - 38 mm (1-1/2") Pro-Flo® SHIFT Series Bolted Plastic Pump with Teflon and Wilflex
  • Series: Pro-Flo Shift
QTY
  • Details
  • Industry / Applications

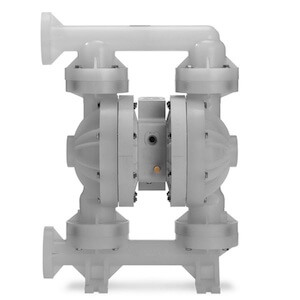

Wilden AODD Pump - PS400/PPPPP/TWS/TF/PTV


38 mm (1-1/2") Pro-Flo® SHIFT Series Bolted Plastic Pump with Teflon and Wilflex


AIR INLET 3/4 FNPTLIQUID INLET 1-1/2 (38MM)LIQUID DISCHARGE 1-1/2 (38MM)CONNECTION TYPE ANSIMAX FLOW RATE TPE 118 GPMMAX PRESSURE 125 PSIMAX DIAMETER SOLIDS 1/4MAX SUCTION LIFT CAPABILITY TPE 18.4 DRYDISPLACEMENT PER STROKE TPE 0.27 GAL

The Wilden® bolted plastic air-operated double-diaphragm (AODD) pump combines maximum performance and efficiency with superior containment. Wilden's bolted-construction pumps offer improved flow rates and a redesigned liquid path that reduces internal friction for maximum output and longer diaphragm life.

DIN or ANSI flanged inlet/discharge liquid connections

Featuring the energy-efficient Pro-Flo® SHIFT ADS Greater flow - more gallons pumped per SCFM Reduced air consumption and kilowatt usage Bolted construction for superior containment Large-solids passage High suction lift Ease of operation and maintenance Increased on/off reliability Longest Mean Time Between Repair (MTBR)
General Industrial, Oil & Gas, Paints & Coatings, Chemical Process, Hygienic, Water & Wastewater, Mining, Military & Marine, Pharmaceutical, Food & Beverage, Semiconductor and Ceramics.
