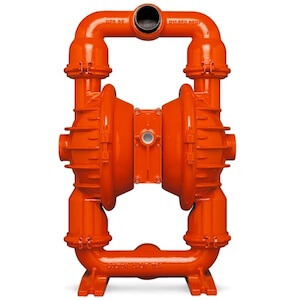

Wilden AODD Pump - P8/AAAPP/NEU/NE/NE

08-0120 MFG #: 08-0120
$1,672.56 $1,672.56 / EA
  • PROMOTION: 15% off Wilden Parts when purchased with any Wilden Pump
  • SHIPSFREE: On UPS Ground through 12/30/20 - promo code: FREESHIPWILDEN*
  • States: NC, SC, VA
  • Summary: Wilden AODD Pump - P8 - 08-0120 - 51 mm (2") Pro-Flo® Series Clamped Aluminum Pump wih Neoprene Ultra-Flex
  • Series: Pro-Flo
QTY
  • Details
  • Industry / Applications

Wilden AODD Pump - P8/AAAPP/NEU/NE/NE


51 mm (2") Pro-Flo® Series Clamped Aluminum Pump wih Neoprene Ultra-Flex


AIR INLET 1/2 FNPTLIQUID INLET 2 (51MM)LIQUID DISCHARGE 2 (51MM)CONNECTION TYPE NPT/BSPTMAX FLOW RATE RUBBER 166 GPMMAX PRESSURE 125 PSIMAX DIAMETER SOLIDS 1/4MAX SUCTION LIFT CAPABILITY RUBBER 22.1 DRYDISPLACEMENT PER STROKE RUBBER 0.75 GAL

Featuring the original air-operated double-diaphragm pump design by Jim Wilden, clamped metal pumps offer a simple, rugged design for general industrial applications. Designed with ease of maintenance in mind, clamped pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's clamped pumps have pumped billions of gallons of fluid on an annual basis.

NPT and BSP threaded inlet/discharge liquid connections for quick disconnect/connect

Decades of proven performance Clamped connections for faster maintenance Low cost Simple installation Ease of operation and maintenance
General Industrial, Oil & Gas, Paints & Coatings, Chemical Process, Hygienic, Water & Wastewater, Mining, Military & Marine, Pharmaceutical, Food & Beverage, Semiconductor and Ceramics.
