Wilden AODD Pump - P4/AAAPP/ZWS/WF/WF

04-13677 MFG #: 04-13677
$1,169.32 $1,169.32 / EA
  • PROMOTION: 15% off Wilden Parts when purchased with any Wilden Pump
  • SHIPSFREE: On UPS Ground through 12/30/20 - promo code: FREESHIPWILDEN*
  • States: NC, SC, VA
  • Summary: Wilden AODD Pump - P4 - 04-13677 - 38 mm (1-1/2") Pro-Flo® Series Clamped Aluminum Pump with Santoprene (Wilflex)
  • Series: Pro-Flo
QTY
  • Details
  • Industry / Applications

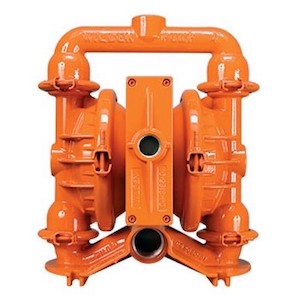

Wilden AODD Pump - P4/AAAPP/ZWS/WF/WF


38 mm (1-1/2") Pro-Flo® Series Clamped Aluminum Pump with Santoprene (Wilflex)


AIR INLET 3/4 FNPTLIQUID INLET 1-1/2 (38MM)LIQUID DISCHARGE 1-1/2 (38MM)CONNECTION TYPE ANSIMAX FLOW RATE PTFE 120 GPMMAX PRESSURE 125 PSIMAX DIAMETER SOLIDS 1/4MAX SUCTION LIFT CAPABILITY PTFE 15.9 DRYDISPLACEMENT PER STROKE RUBBER 0.35 GAL

As part of the Wilden® Pro-Flo® Series of AODD pumps, this pump is designed for basic general industrial applications with good flow, reliability and air consumption. It utilizes a clamped-band design for easy assembly and disassembly. This robust combination is perfect for applications where reliable operation and consistent performance maintenance are required, including dewatering, paint & coatings and ceramics.

Fitted with robust Pro-Flo ADS Clamped connections for fast maintenance Self-priming Dry run without damage Shear-sensitive Longest Mean Time Between Repair (MTBR) Superior anti-freezing Increased On/Off reliability
General Industrial, Oil & Gas, Paints & Coatings, Chemical Process, Hygienic, Water & Wastewater, Mining, Military & Marine, Pharmaceutical, Food & Beverage, Semiconductor and Ceramics.
