Wilden AODD Pump - P2/SSPPP/TSS/TF/STF/2070

02-12741 MFG #: 02-12741
$2,973.44 $2,973.44 / EA
  • PROMOTION: 15% off Wilden Parts when purchased with any Wilden Pump
  • SHIPSFREE: On UPS Ground through 12/30/20 - promo code: FREESHIPWILDEN*
  • States: NC, SC, VA
  • Summary: Wilden AODD Pump - P2 - 02-12741 - 25 mm (1") Pro-Flo®Saniflo™ FDA Series Clamped Stainless Steel Pump with Teflon (PTFE)
  • Series: Saniflo
QTY
  • Details
  • Industry / Applications

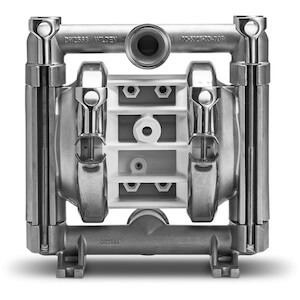

Wilden AODD Pump - P2/SSPPP/TSS/TF/STF/2070


25 mm (1") Pro-Flo®Saniflo™ FDA Series Clamped Stainless Steel Pump with Teflon (PTFE)


AIR INLET 1/4 FNPTLIQUID INLET 1 (25MM)LIQUID DISCHARGE 3/4 (19MM)CONNECTION TYPE NPT/BSPTMAX FLOW RATE PTFE 44.1 GPMMAX PRESSURE 125 PSIMAX DIAMETER SOLIDS 1/8MAX SUCTION LIFT CAPABILITY PTFE 15.3 DRYDISPLACEMENT PER STROKE TPE 0.08 GAL

Saniflo™ FDA Series pumps are designed for standard food applications that don’t require the Hygienic™ Series (HS) design or clean-in-place (CIP) capability. They are well suited for sanitary applications moving high-acid, high-sugar and high-fat media. With simple installation and robust design, FDA pumps comply with FDA, CE, EC 1935/2004 and ATEX requirements.

Tri-Clamp® connections with wingnut clamped design Quick breakdown/reassembly for cleaning Shear sensitive Robust durability Straight flow-through design
General Industrial, Oil & Gas, Paints & Coatings, Chemical Process, Hygienic, Water & Wastewater, Mining, Military & Marine, Pharmaceutical, Food & Beverage, Semiconductor and Ceramics.
