Wilden AODD Pump - P.025/PZPPP/TNL/TF/PTV

00-9616 MFG #: 00-9616
$439.76 $439.76 / EA
  • PROMOTION: 15% off Wilden Parts when purchased with any Wilden Pump
  • SHIPSFREE: On UPS Ground through 12/30/20 - promo code: FREESHIPWILDEN*
  • States: NC, SC, VA
  • Summary: Wilden AODD Pump - P.025 - 00-9616 - 6 mm (1/4") Pro-Flo® Series Clamped Plastic Pump with Teflon & Neoprene
  • Series: Pro-Flo
QTY
  • Details
  • Industry / Applications

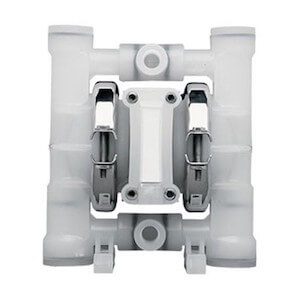

Wilden AODD Pump - P.025/PZPPP/TNL/TF/PTV


6 mm (1/4") Pro-Flo® Series Clamped Plastic Pump with Teflon & Neoprene


AIR INLET 1/8 FNPTLIQUID INLET 1/4 (6MM)LIQUID DISCHARGE 1/4 (6MM)CONNECTION TYPE NPTMAX FLOW RATE RUBBER 4.8 GPM TPE 4.8 GPM PTFE 4.8 GPMMAX PRESSURE 125 PSIMAX DIAMETER SOLIDS 1/64MAX SUCTION LIFT CAPABILITY RUBBER 9 DRY TPE 10 DRY PTFE 8 DRYDISPLACEMENT PER STROKE RUBBER 0.005 GAL TPE 0.005 GAL PTFE 0.005 GAL

As part of the Wilden® Pro-Flo® Series of AODD pumps, this pump has been specifically designed to increase productivity while reducing air and energy consumption. It utilizes a clamped-band design for easy assembly and disassembly. Designed for difficult applications, this pump is perfect for dangerous/valuable chemical applications and wastewater applications where flow, efficiency and routine maintenance are required.

Fitted with robust Pro-Flo ADS Clamped connections for faster maintenance Self-priming Dry run without damage Shear-sensitive Longest Mean Time Between Repair (MTBR) Superior anti-freezing Increased On/Off reliability
General Industrial, Oil & Gas, Paints & Coatings, Chemical Process, Hygienic, Water & Wastewater, Mining, Military & Marine, Pharmaceutical, Food & Beverage, Semiconductor and Ceramics.
