Wilden AODD Pump - P.025/KZPPP/TNL/TF/KTV

00-9604 MFG #: 00-9604
$565.80 $565.80 / EA
  • PROMOTION: 15% off Wilden Parts when purchased with any Wilden Pump
  • SHIPSFREE: On UPS Ground through 12/30/20 - promo code: FREESHIPWILDEN*
  • States: NC, SC, VA
  • Summary: Wilden AODD Pump - P.025 - 00-9604 - 6 mm (1/4") Pro-Flo® Series Clamped Kynar (PVDF) Pump with Teflon & Neoprene
  • Series: Pro-Flo
QTY
  • Details
  • Industry / Applications

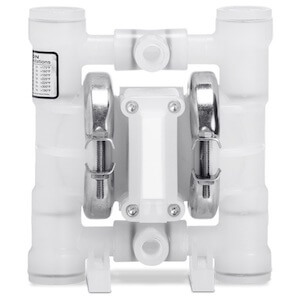

Wilden AODD Pump - P.025/KZPPP/TNL/TF/KTV


6 mm (1/4") Pro-Flo® Series Clamped Kynar (PVDF) Pump with Teflon & Neoprene


AIR INLET 1/8 FNPTLIQUID INLET 1/4 (6MM)LIQUID DISCHARGE 1/4 (6MM)CONNECTION TYPE NPTMAX FLOW RATE RUBBER 4.8 GPM TPE 4.8 GPM PTFE 4.8 GPMMAX PRESSURE 125 PSIMAX DIAMETER SOLIDS 1/64MAX SUCTION LIFT CAPABILITY RUBBER 9 DRY TPE 10 DRY PTFE 8 DRYDISPLACEMENT PER STROKE RUBBER 0.005 GAL TPE 0.005 GAL PTFE 0.005 GAL

When Jim Wilden first added a plastic pump series to his product portfolio, he designed it with what he knew best: a clamped pump. Incorporating the same benefits as a clamped metal pump, these plastic versions offer a simple, rugged design that is ideally suited for chemical applications. Engineered with ease of maintenance in mind, clamped plastic pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's clamped plastic pumps have pumped billions of gallons of fluid on an annual basis.

FNPT threaded inlet/discharge liquid connections Rotatable inlet and discharge for flexibility

Decades of proven performance Clamped connections for faster maintenance Low cost Simple installation Ease of operation and maintenance
General Industrial, Oil & Gas, Paints & Coatings, Chemical Process, Hygienic, Water & Wastewater, Mining, Military & Marine, Pharmaceutical, Food & Beverage, Semiconductor and Ceramics.
