Viking Pump O-Pro Seal

VKNG-O-PRO-SEAL
Requires Quote
  • States: GA, NC, SC, TN
  • Summary: O-Pro™ seals are perfect for difficult to seal products like chocolate, ink, paint, molasses, edible oil, corn syrup, honey, lube oil, grease, asphalt, wax, resin, starch, fat, isocyanate, adhesive and more. New installations and retrofit.

QTY
  • Details
  • Industry / Applications
  • Video

VIKING PUMP O-PRO SEALS - MADE FOR CHALLENGING FLUID SEALING APPLICATIONS

O-Pro™ seals are perfect for a range of product processing that are difficult to seal like chocolate, inks, paints, molasses, edible oils, corn syrup, honey, lube oil, grease, asphalt, wax, resins, starch, fats, isocyanates, adhesives and more.  They were originally designed for chocolate and are a unique patent-pending product.

The o-ring cartridge and barrier seal technology is designed for those leaking fluids in your plant where mechanical seals and packing can’t hold up to the application. The O-pro seal is simple and reliable. This is your chance to clean up those unsightly leaking pump seals for a cleaner and safer environment in your facility.

O-Pro Seals can used on new installations as well as retrofit.  They utilize a series of O-rings to create a robust seal and lubrication chamber, all in one.
  • O-Pro Barrier seal functions as both a seal and bracket bushing
  • O-Pro Guard seal is a simple retrofit option

O-PRO BARRIER SEAL DETAILS

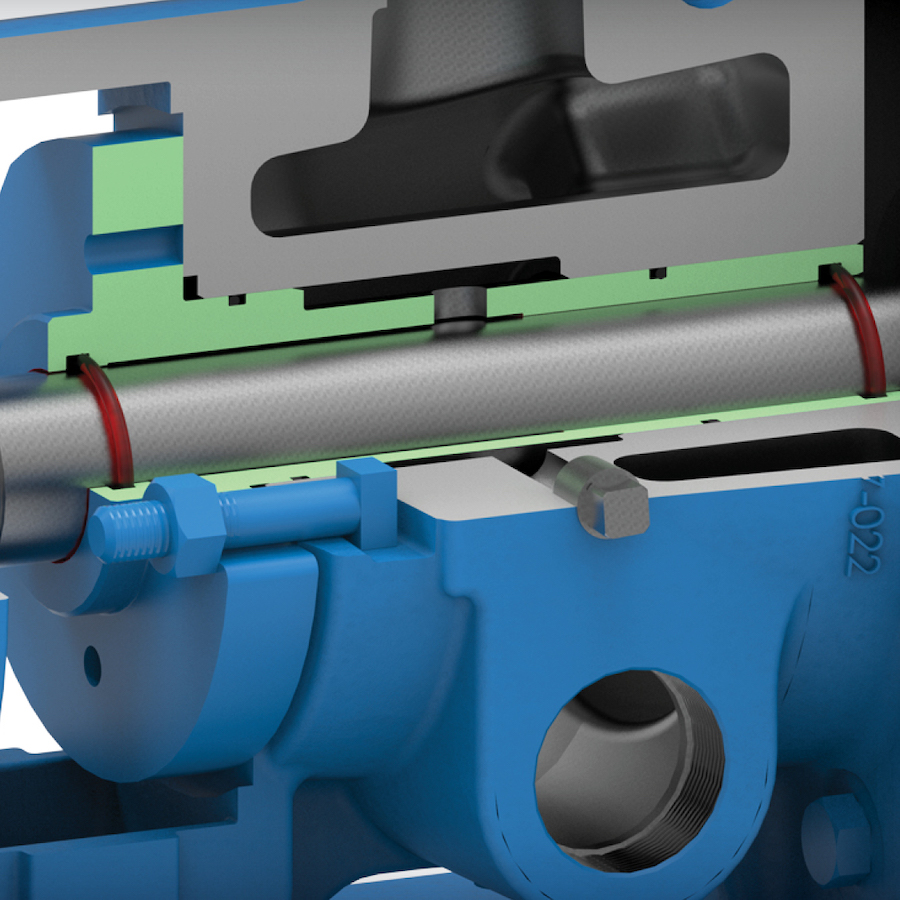

O-Pro Barrier seal replaces a packing or mechanical seal by occupying the internal bracket cavity with a machined seal gland, utilizing O-rings to seal externally on the bracket and internally on the shaft. A combination of O-rings and lubricating fluid provide a robust seal preventing process fluid from leaking out of the pump. O-Pro Barrier design also contains lubrication between the shaft and bushing to reduce wear.

The O-Pro Barrier seal, made of hardened cast iron, combines a bracket bushing and seal gland, with double O-ring seals, to stop process fluids from entering the bracket and eventually leaking from the pump.

O-PRO GUARD SEAL DETAILS

O-Pro Guard seal replaces packing or mechanical seal by sealing between the bracket, sleeve & shaft surfaces with a series of O-rings. The series of O-rings and lubrication provide a robust seal for many applications. The stainless steel construction utilizes a sleeve that is secured to the shaft to address any shaft wear concerns to ensure superior performance.

The O-Pro Guard seal is a compact design for an easy retrofit answer for a leaking pump. Stainless steel construction provides compatibility in many applications.

VIKING PUMP RELIABILITY NOW EXTENDS TO SEALS

Viking Pumps are well known in pumping applications for their ability to pump the most difficult, viscous, corrosive and abrasive fluids. For over 100 years Viking Pumps have been handling difficult to pump fluids where other pumps could not be considered. Subsequently these difficult to pump fluids are often difficult to seal from atmospheric leaks as well.

Viking Pump has always been innovative in sealing technology for their gear pumps with magnetic, leak-free pumps, a variety of single and double mechanical seals and now the new patented O-Pro Barrier and Guard seals for gear pumps.

PRE-INSTALLED O-PRO SEAL PUMPS

Viking Pump also offers O-Pro Seals pre-installed on some of their pumps.  Contact us for details and a demo.

Industry application include Plastics, Abrasives, Sealants, Adhesives, Agricultural, Asphalt, Biodiesel, Brewing, Beverage, Chemical, Chocolate, Ethanol, Fats & Oils, Fiber, Food, Fuels, Fuel Oils, Oil Production & Refining, Paints & Coatings, Personal Care Products, Pharmaceuticals, Polymers, Polyurethane foam, Printing Inks, Pulp & Paper, Refrigeration, Rubber, Sugar, Soaps & Detergents, Water Treatment, Wind Power.
