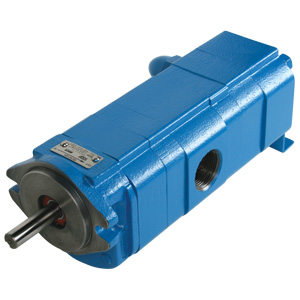

Viking Pump Model SG40732G0V Cast Iron Spur Gear Pump L-0732-1832-505
- Note: Contact us for serial number cross reference to model number as well as special job quotes.
- States: GA, NC, SC, TN
- Summary: Viking Pump SG40732G0V Spur Gear - Port 1-1/2" Suction/ 1-1/4" Discharge NPT Opposite - Cast Iron Externals - FKM Seals - FlowMin 0 GPM FlowMax 32 GPM - PressureMax 500 PSI - Relief Valve
- Series: Spur Gear Series Viking Pump
- Type: Spur Gear
- Details
- Series Info
- Industry / Applications
- Resource Links
SG40732G0V Viking Motor Speed Pump Specifications
|
Port Size |
1-1/2 Suction/ 1-1/4 Discharge” |
|
Port Type |
NPT |
|
Port Orientation |
Opposite |
|
Externals |
Cast Iron |
|
Seal Type |
Mechanical Seal |
|
Seals |
FKM |
|
Flow Min |
0 GPM |
|
Flow Max |
32 GPM |
|
Pres Max |
500 PSI |
|
Valve |
Relief Valve |
|
Gears Rotor Idler |
N/A |
|
Shafts |
Heat Treated Steel |
|
Idler Pin |
N/A |
|
Idler Bushing |
N/A |
|
Shaft Bushings |
Carbon Graphite |
Spur Gear Series Viking Pump Product Line details
Viking SG is an extensive series of precision, industrial-duty external gear pumps that develop higher pressures than other Viking pumps, yet offer a similarly broad range of options to handle a diverse range of liquids and applications. With 26 different displacements in five frame sizes to 190 GPM (719 LPM), most applications can be closely matched to a pump operating at motor speeds, without the need for a reducer or gear motor.
These pumps were designed for greatest reliability, with standard features like spur-type gears (instead of helical gears, which thrust into pump casing and bracket) and rolling element anti-friction bearings (instead of bushings, which wear every time a pump is stopped and the hydrodynamic film is lost).
Unwanted leaks are prevented by using the best sealing technology available, including single or duplex lip seals, single mechanical component seals, and single or double mechanical cartridge seals with seal plans (SG-10 & SG-14 only).
Installation is simple, with brackets to close couple to NEMA or IEC motors, or foot mount for speed-reduced applications.
Piping is easy, with straight-through, 180° ports with the industry’s broadest variety of threaded ports and flange options.
