Viking Pump Model SG0741G1V Cast Iron Spur Gear Pump L-0741-1852-530
Carotek.com displays pricing in accordance with our manufacturer’s internet pricing policies. Contact us for volume discounts and quotes.
Images are representative only - actual product may differ

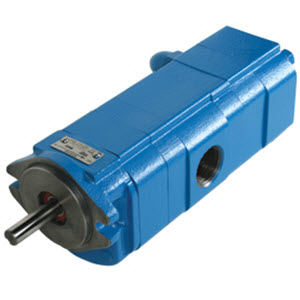

Viking Pump Model SG0741G1V Cast Iron Spur Gear Pump L-0741-1852-530
Part #L-0741-1852-530
MFG #L-0741-1852-530
Brand : Viking Pump
Note : Contact us for serial number cross reference to model number as well as special job quotes.
Series : Spur Gear Series Viking Pump
States : GA, NC, SC, TN
Viking Pump SG0741G1V Spur Gear - Port 1" NPT Opposite - Cast Iron Externals - PTFE Seals - FlowMin 0 GPM FlowMax 4 GPM - PressureMax 500 PSI - Relief Valve
Type : Spur Gear
- Details
- Industry / Applications
- Resource Links
SG0741G1V Viking Motor Speed Pump Specifications
|
Port Size |
1” |
|
Port Type |
NPT |
|
Port Orientation |
Opposite |
|
Externals |
Cast Iron |
|
Seal Type |
Lip Seal |
|
Seals |
PTFE |
|
Flow Min |
0 GPM |
|
Flow Max |
4 GPM |
|
Pres Max |
500 PSI |
|
Valve |
Relief Valve |
|
Gears Rotor Idler |
N/A |
|
Shafts |
Heat Treated Steel |
|
Idler Pin |
N/A |
|
Idler Bushing |
N/A |
|
Shaft Bushings |
Carbon Graphite |
