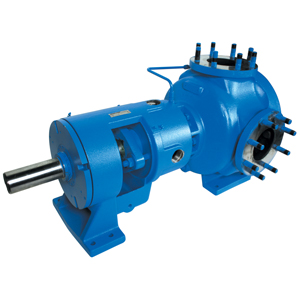

Viking Pump Model N324A Cast Iron Gear Pump 5-5550-262A-004 LH

5-5550-262A-004 LH MFG #: 5-5550-262A-004 LH
Requires Quote
  • Note: Contact us for serial number cross reference to model number as well as special job quotes.
  • States: GA, NC, SC, TN
  • Summary: Viking Pump N324A Universal - Port 5" Class 125 ANSI Flange 90 Degree - Cast Iron Externals - Standard Packing Seals - FlowMin 0 GPM FlowMax 600 GPM - PressureMax 200 PSI - Less Relief Valve
  • Series: 324A / 1324A / 4324A Series Viking Pump
  • Type: Asphalt, Universal
  • Details
  • Series Info
  • Industry / Applications
  • Resource Links
  • LTL Shipping Charges

N324A Viking Motor Speed Pump Specifications

Port Size


Port Type

 Class 125 ANSI Flange

Port Orientation

 90 Degree


 Cast Iron

Seal Type



 Standard Packing

Flow Min

 0 GPM

Flow Max

 600 GPM

Pres Max

 200 PSI


 Less Relief Valve

Gears Rotor Idler

 Hardened Steel / Hardened Steel


 Hardened Steel

Idler Pin

 Tungsten Carbide

Idler Bushing

 Tungsten Carbide

Shaft Bushings

 Hardened Cast Iron

324A / 1324A / 4324A Series Viking Pump Product Line details

Pumps are designed for a broad range of applications, from thin to thick, requiring continuous duty at pressures up to 200 PSI (14 Bar). Even higher pressures are possible with high fluid viscosities at reduced operating speeds (consult factory). They are also capable of operating under suction lift conditions and operate equally well in either direction.

The Universal Product Line has the broadest range of sealing options of all pumps built by Viking. The stuffing box on all sizes accepts packing, numerous component single mechanical seals, or a wide variety of cartridge seals.

The Universal Product Line is Viking Pump’s most versatile line of internal gear pumps due to the availability of many design and material options.

Industry application include Plastics, Abrasives, Sealants, Adhesives, Agricultural, Asphalt, Biodiesel, Brewing, Beverage, Chemical, Chocolate, Ethanol, Fats & Oils, Fiber, Food, Fuels, Fuel Oils, Oil Production & Refining, Paints & Coatings, Personal Care Products, Pharmaceuticals, Polymers, Polyurethane foam, Printing Inks, Pulp & Paper, Refrigeration, Rubber, Sugar, Soaps & Detergents, Water Treatment, Wind Power.

Access these resource files on Viking Pump primary site (will open in new window)

N324A Viking Motor Speed Pump Drawing

Brochure, Technical Service Manual and Drawings

This items ships common carrier LTL. Carotek will arrange shipping at the best price and delivery terms. The shipping charge may vary from the charge on your initial order. We will advise you of any additonal shipping charges and/or refund you if the actual shipping is less. Buyer is responsible forproper unloading facilities and equipment. If proper arrangements have not been made when delivery arrives, additonal charges will apply.
