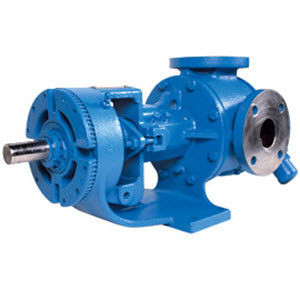

Viking Pump Model KK127A Stainless Steel Gear Pump 4-2520-262C-501

4-2520-262C-501 MFG #: 4-2520-262C-501
$10,191.17 $10,191.17 / EA
  • Note: Contact us for serial number cross reference to model number as well as special job quotes.
  • States: GA, NC, SC, TN
  • Summary: Viking Pump KK127A Universal - Port 2" Class 150 ANSI Flange 90 Degree - Stainless Steel Externals - Standard Packing Seals - FlowMin 0 GPM FlowMax 65 GPM - PressureMax 150 PSI - Relief Valve
  • Series: 124A / 1124A / 4124A Series Viking Universal Pump
  • Type: Universal
QTY
  • Details
  • Series Info
  • Industry / Applications
  • Resource Links
  • LTL Shipping Charges

KK127A Viking Motor Speed Pump Specifications

Port Size

  2”

Port Type

 Class 150 ANSI Flange

Port Orientation

 90 Degree

Externals

 Stainless Steel

Seal Type

 Packing

Seals

 Standard Packing

Flow Min

 0 GPM

Flow Max

 65 GPM

Pres Max

 150 PSI

Valve

 Relief Valve

Gears Rotor Idler

 316SS / 316SS

Shafts

 Stainless Steel

Idler Pin

 Colmonoy Coated

Idler Bushing

 Carbon Graphite

Shaft Bushings

 Carbon Graphite

124A / 1124A / 4124A Series Viking Universal Pump Product Line details

The Universal Product Line has the broadest range of sealing options of all pumps built by Viking. The stuffing box on all sizes accepts packing, numerous component single mechanical seals, or a wide variety of cartridge seals. The Universal Product Line is Viking Pump’s most versatile line of internal gear pumps due to the availability of many design and material options.

• 1124A Series™, 1124AE Series™, 1324A Series™: This NEW Universal Seal Product Line comes with the O-Pro Barrier Seal factory installed. The Universal Product Line combines the tested reliability of the Universal pump & O-rings to create a robust seal and lubrication chamber, all in one. Viking Pump is the leader in internal gear innovation and the latest development is the O-Pro™ Seal technology.

• Positive Displacement Internal Gear pumping principle handles a broad range of viscosities with constant flow rate

• Axial rotor thrust is controlled by double row ball bearing or tapered roller bearings; a bushing provides a secondary point of radial shaft support

• Rotatable bearing housing provides easy rotor end clearance adjustment for viscosity or to compensate wear

• Numerous material options are available for bushings, idler pins, shafts, rotors, idlers and elastomers

• Gear and pump geometry has been optimized based on more than 100 years of experience

• Footed cast iron bracket provides rigid mounting to help maintain alignment, which extends seal and bearing life

• Can use direct drive, gear reducer or gearmotor drive, or belt-drive

• Pressure relief valve standard on all except RS size pumps; less valve / plain head option available

Industry application include Plastics, Abrasives, Sealants, Adhesives, Agricultural, Asphalt, Biodiesel, Brewing, Beverage, Chemical, Chocolate, Ethanol, Fats & Oils, Fiber, Food, Fuels, Fuel Oils, Oil Production & Refining, Paints & Coatings, Personal Care Products, Pharmaceuticals, Polymers, Polyurethane foam, Printing Inks, Pulp & Paper, Refrigeration, Rubber, Sugar, Soaps & Detergents, Water Treatment, Wind Power.

Access these resource files on Viking Pump primary site (will open in new window)

KK127A Viking Motor Speed Pump Drawing

Brochure, Technical Service Manual and Drawings

This items ships common carrier LTL. Carotek will arrange shipping at the best price and delivery terms. The shipping charge may vary from the charge on your initial order. We will advise you of any additonal shipping charges and/or refund you if the actual shipping is less. Buyer is responsible forproper unloading facilities and equipment. If proper arrangements have not been made when delivery arrives, additonal charges will apply.
