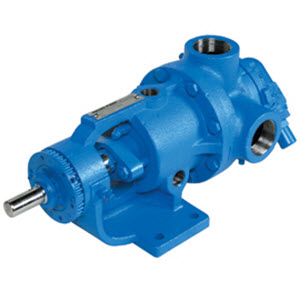

Viking Pump Model H4724 Stainless Steel Gear Pump 4-1462-2632-501

4-1462-2632-501 MFG #: 4-1462-2632-501
$7,482.40 $7,482.40 / EA
  • Note: Contact us for serial number cross reference to model number as well as special job quotes.
  • States: GA, NC, SC, TN
  • Summary: Viking Pump H4724 Universal - Port 1.5" NPT 90 Degree - Stainless Steel Externals - PTFE Seals - FlowMin 0 GPM FlowMax 10 GPM - PressureMax 150 PSI - Relief Valve
  • Series: 724 / 4724 Series Viking Universal Pump
  • Type: Universal
  • Details
  • Series Info
  • Industry / Applications
  • Resource Links

H4724 Viking Motor Speed Pump Specifications

Port Size


Port Type


Port Orientation

 90 Degree


 Stainless Steel

Seal Type

 Mechanical Seal



Flow Min

 0 GPM

Flow Max

 10 GPM

Pres Max

 150 PSI


 Relief Valve

Gears Rotor Idler

 316SS / 316SS


 Stainless Steel

Idler Pin

 Colmonoy Coated

Idler Bushing

 Carbon Graphite

Shaft Bushings

 Carbon Graphite

724 / 4724 Series Viking Universal Pump Product Line details

These pumps feature 316SS construction for handling corrosive liquid applications. These pumps have additional unique features, however, which separate them from other Viking Pump series. While the wetted components are stainless steel, the footed mounting bracket is cast iron, making the 724 and 4724 Series an economical alternative to a fully stainless steel pump.

Sizes H and larger feature a jacketed bracket for the circulation of steam or hot oil. Optional jacketed head plates (sizes G and larger) and optional jacketed valves (sizes L and larger) are available to add additional jacketing as required.

The small pumps (sizes F, FH & G) are especially useful in pilot plant service, small metering applications, accurate chemical additive processing, pumping of pharmaceuticals in small capacities and for feed and product pumps on evaporators and distillation systems. They are opposite ported and available with packing or mechanical seals. The larger pumps meet the needs of moving corrosive liquids when greater capacities are required in chemical, food and other processing plants. They feature revolvable right angle casings for a variety of port orientations. They are available with packing or behind the rotor mechanical seals.

Industry application include Plastics, Abrasives, Sealants, Adhesives, Agricultural, Asphalt, Biodiesel, Brewing, Beverage, Chemical, Chocolate, Ethanol, Fats & Oils, Fiber, Food, Fuels, Fuel Oils, Oil Production & Refining, Paints & Coatings, Personal Care Products, Pharmaceuticals, Polymers, Polyurethane foam, Printing Inks, Pulp & Paper, Refrigeration, Rubber, Sugar, Soaps & Detergents, Water Treatment, Wind Power.

Access these resource files on Viking Pump primary site (will open in new window)

H4724 Viking Motor Speed Pump Drawing

Brochure, Technical Service Manual and Drawings
