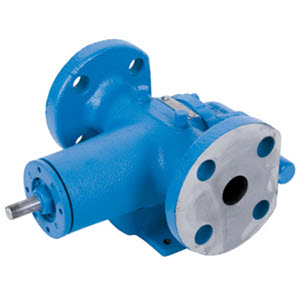

Viking Pump Model GG4197 Stainless Steel Gear Pump 4-1062-2243-502

4-1062-2243-502 MFG #: 4-1062-2243-502
$6,242.40 $6,242.40 / EA
  • Note: Contact us for serial number cross reference to model number as well as special job quotes.
  • States: GA, NC, SC, TN
  • Summary: Viking Pump GG4197 Motor Speed - Port 1" Class 150 ANSI Flange Opposite - Stainless Steel Externals - PTFE Seals - FlowMin 0 GPM FlowMax 10 GPM - PressureMax 200 PSI - Relief Valve
  • Series: 4197 Series Viking Motor Speed Pump
  • Type: Motor Speed
QTY
  • Details
  • Series Info
  • Industry / Applications
  • Resource Links

GG4197 Viking Motor Speed Pump Specifications

Port Size

  1”

Port Type

 Class 150 ANSI Flange

Port Orientation

 Opposite

Externals

 Stainless Steel

Seal Type

 Mechanical Seal

Seals

 PTFE

Flow Min

 0 GPM

Flow Max

 10 GPM

Pres Max

 200 PSI

Valve

 Relief Valve

Gears Rotor Idler

 316SS / 770SS

Shafts

 Stainless Steel

Idler Pin

 Colmonoy Coated

Idler Bushing

 Carbon Graphite

Shaft Bushings

 Sealed Ball Bearing

4197 Series Viking Motor Speed Pump Product Line details

Viking’s Motor Speed Product Line internal gear pumps are available in capacities up to 75 GPM. These pumps can be furnished directly connected to a 50 Hz or 60 Hz motor.

4197 Series™ and 4197-SEP Series™ pumps are designed for foot type horizontal mounting. These pumps are built for continuous or intermittent duty for such applications as filtering, circulating, transferring or booster service in general industrial, petrochemical, and other industries. The 4197-SEP Series™ pumps are specially fit with low temperature materials suitable for subzero solvent transfer or circulation applications. They are also assembled and tested using only food grade liquids.

Both pump series are furnished as standard with mechanical seal construction to minimize liquid loss and for shaft protection. The thrust control provides micrometer adjustments for accurate rotor and shaft positioning to help you keep operating with new-pump efficiency through years of heavy duty service.

Industry application include Plastics, Abrasives, Sealants, Adhesives, Agricultural, Asphalt, Biodiesel, Brewing, Beverage, Chemical, Chocolate, Ethanol, Fats & Oils, Fiber, Food, Fuels, Fuel Oils, Oil Production & Refining, Paints & Coatings, Personal Care Products, Pharmaceuticals, Polymers, Polyurethane foam, Printing Inks, Pulp & Paper, Refrigeration, Rubber, Sugar, Soaps & Detergents, Water Treatment, Wind Power.

Access these resource files on Viking Pump primary site (will open in new window)

GG4197 Viking Motor Speed Pump Drawing

Brochure, Technical Service Manual and Drawings
