Viking Pump Hygienic Centrifugal Pumps - TR-IS, TR-C & TR-C+

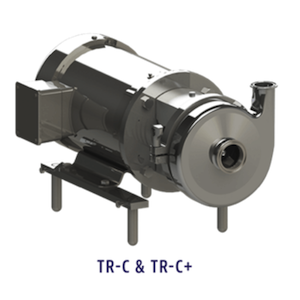

Viking Pump Hygienic TR-C & TR-C+

The Viking Pump Hygienic TR-C & TR-C+ are 3A-certified hygienic centrifugal pumps at a low cost.  They are ideal for hygienic and non-hygienic thin liquids in the food, beverage, and chemical industries.

The model range offers flows of up to 1200 GPM and pressures to 270 feet.

CAPACITY: 4,542 LPM/1200 GPM

VISCOSITY: up to 600 cP

PRESSURE: 8 BAR / 117 PSI

TEMPERATURE: 120°C / 248°F

• 316L construction and sanitary finish in compliance with 3A standards

• TR-C pumps and parts are 100% physically & hydraulically interchangeable

  with other “C-Series” style products; no piping changes are required

• Open impeller design

• Connections: Clamp (standard), Flange, NPT, Weldable, Bevel Seat, DIN, SMS

• Motors are available in IEC and NEMA 56C, TC, & TSC

• The TR-C+ delivers improved reliability and cleanability thanks to enhanced shaft and retainer designs

• TR-C+ seal, case, adapter, and backplate are interchangeable with standard “C-Series” models

Viking Pump Hygienic TR-IS

The Viking Pump Hygienic TR-IS is the most economical hygienic centrifugal on the market that includes both fully electropolished internal components and internal seals as standard. Designed to both 3A and EHEDG compliance for CIP, this pump is the ideal solution for the pharmaceutical, personal care, food, and beverage industries where maximum hygiene, performance, and reliability are critically important. The TR-IS also conveniently provides a drop- in footprint for “C-Series” pumps, making system upgrades instantly available.

CAPACITY: 3,936 LPM / 1,040 GPM

VISCOSITY: up to 800 cP

PRESSURE: 10.2 BAR / 150 PSI

TEMPERATURE: 120°C / 248°F

• 316L stainless steel construction certified for 3A and in compliance with EHEDG standards

• 100% electropolished internals for fastest cleaning and maximum hygiene

• Internal seal is more hygienic and delivers extended service life compared to external seals

• Fully CIP (clean in place) capable, and fully drainable

• Semi-open impeller design delivers improved efficiency ranging from 5-8% in most applications, saving on energy costs

• Matches the same footprint as industry standard “C-Series” pumps, no pipework changes are required for installation

• Connections: Clamp (standard), Flange, NPT, Weldable, Bevel Seat, DIN, SMS

• Convert easily between single and double balanced mechanical seals in SiC/SiC, C/SiC, SiC/SiC/SiC, or C/SiC/SiC
