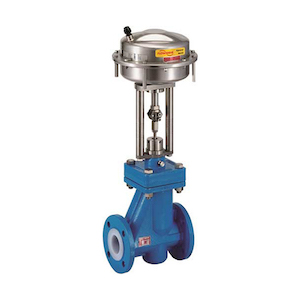

Kammer Lined Flow Valves -132000 Series
Part #KMMR-LNDFLW
Brand : Kammer Valves
States : NC, SC, VA
The Kammer Lined Flow 132000 Series control valve features high quality lining such as PFA (standard), PVDF, PP, ETFE, and FEB as well as PFA antistatic, covering most mediums and applications
- Details
- Industry / Applications
- Documents
The Kammer Lined Flow 132000 Series control valve features high quality lining such as PFA (standard), PVDF, PP, ETFE, and FEB as well as PFA antistatic, covering most mediums and applications. The PTFE bellows design allows a standard pressure rating of PN16, and the increased flow capacity means the most economical valve can be chosen for the application. The threaded plug and seat design means easy maintenance and replacements.
Key Features & Benefits:
- Anti-blowout stem design
- T-groove liner connection
- PN16 modified PTFE bellows seal, as standard configuration
- Guided stem
- Metal to metal body/bonnet connection for defined compression of the gasket
- Liner thickness 3.5 mm for valve sizes up to DN 20 / ¾” and 5 mm for all sizes above
- Threaded plug and seat interchangeable with othe rplug and seat sizes
- DIN / ANSI bodies and connections
Optional:
- Hastelloy C-276 plug and seat inserts for small Kvs / Cvs-values
- Test connection NPT ¼”
Attributes:
- Standards and Certifications: IS0 9001:2008, PED Directive 97/23/EC, SIL Certification, CRN Certification (Canadian Registration), ATEX Directive 94/9/EC, CE Mark
- Electronic Certifications for Logix Positioners mounted on Kammer Valves: CSA, FM, SIRA, TR CU, INMETRO, TESTSAFE, KOSHA, CCOE
- Size Range: 0.5 to 6, DN 15 to DN 150
- Pressure Class Range: 150, PN 16
- Seating Material: PTFE
- Configurations: Globe Control Valve, High Performance, Bellows Seal, Anti-Corrosion, Fugitive Emissions
About Kammer Valves
Since 1966, Kammer valves have been engineered and manufactured for challenging applications. Kammer is perfect for custom applications, due to the versatility and interchangeability of the Kammer design. Over half of all Kammer valves are custom designed, often at no additional cost.
