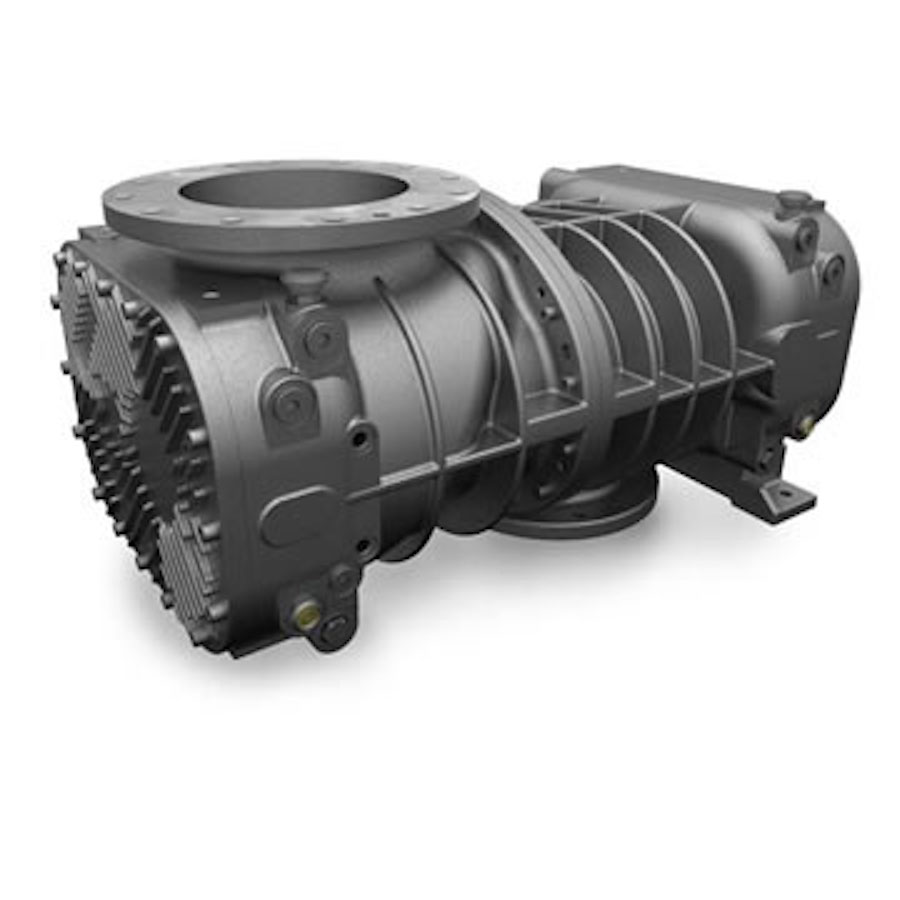

CycloBlower HE Screw Blowers
GD-CBHE
Requires Quote
- States: NC, SC, TN, VA
- Summary: Gardner Denver CycloBlower H.E. Series has a game changing, patented design that delivers a new level of efficiency and performance.
- Details
- Industry / Applications
Specifications:
Pressure up to 36 psigVacuum up to 22 inHgFlows up to 6200 cfm
Features:
Patented, highly-efficient, 3×5 helical screw rotor profile Food-grade PTFE (Polytetrafluoroethylene) coated rotors Exclusive split-cylinder design and available discharge port designs matches the most efficient performance to your application requirementsHigh pressure capability up to 36 psiO-ring sealingHelical Timing GearsUnique Dual Splash Lubrication with eccentric slinger ringForce Feed Lubrication optional for applications under 20 psi, required for applications over 20 psi Inpro/Seal Premium Oil Seals Mechanical Seals also available for gas applicationsPiston Ring or Graphite Air SealsRobust Ductile Iron ShaftAvailable as bare blower for upgrading existing packages
Benefits:
Patented Design
Patented, highly-efficient 3×5 helical screw rotor profile provides a competitive advantage for you Food-grade PTFE (Polytetrafluoroethylene) coated rotors minimize air loss while maximizing efficiency Exclusive split-cylinder design matches performance to your application requirements Three discharge port options optimize efficiencies based on your specific performance needs High pressure capability for dense phase conveying applications
Best of the Best Components
O-Rings
O-Ring Seals Durable Protection No Gaskets
Helical Timing Gears
Smooth, Quiet Operation at all Speeds Assures No-Slip Rotor Timing
Dual-Splash Lubrication with Eccentric Slinger Ring
Unique Design Maximizes Efficiency by Reducing Power Consumption Optimizes Oil Distribution
Discharge Bearings
Axial: 4 Point Angular Contact Bearings Radial: Cylindrical Roller Provides Absolute Strength and Stability on Multiple Planes to Handle Extreme Applications Extended Bearing Life
Inpro/Seal® Premium Oil Seal
Contactless Dual-Ring Design Non-Wearing Extends Longevity Reducing Maintenance Costs Market-Leading Protection Against Leaks
Piston Ring Air Seals
Delivers Leak-Free Operation Provides Maximized Seal Life
Robust Ductile Iron Shaft
Designed & Tested for Strength High Shaft Load Capacity Direct & V-Belt Drive Capable
PTFE (Polytetrafluoroethylene) Coated Rotors
Food Grade Minimizes Air Loss Maximizes Efficiency
Options
Force Feed Lubrication
Ensures Cool Oil Temperature and Distribution Optional for Applications up to 20 psi Required for Applications Greater than 20 psi
Mechanical Seals
For Gas Applications Interchangeable with Inpro/Seal
PTFE (Polytetrafluoroethylene) Coated Cylinder
Minimizes Air Loss Maximizes Efficiency
Graphite Air Seals
Required for High Pressure Applications Over 20 psi
Low, Medium & High Pressure Discharge Cylinder
Optimizes Efficiencies Unique Technology
Installation Flexibility
Top and Bottom Discharge Orientations 3 and 4 Mounting Foot Configurations Available ANSI or Metric Flanges
RTD Ports & Probes
Designed to Ensure Precise and Accurate Bearing Temperature Measurements
Models:
160CDL480, 200CDL600, 250CDL750
Wastewater TreatmentPneumatic ConveyingCementChemical ProcessingIndustrial ProcessingFood ProcessingPlastic Molding and Handling
